Direct thermal, 203 dpi, 178 mm/s, 64 MB RAM, 128 MB FlashROM, 8 dots/mm, display, EPL, ZPLII, USB, USB Host, RS232, Ethernet, Wi-Fi, black

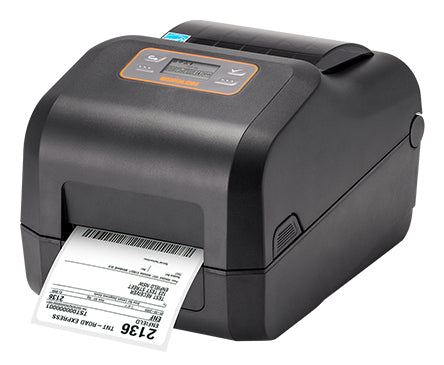

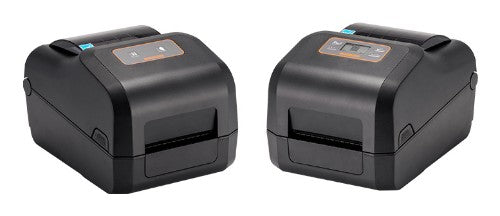

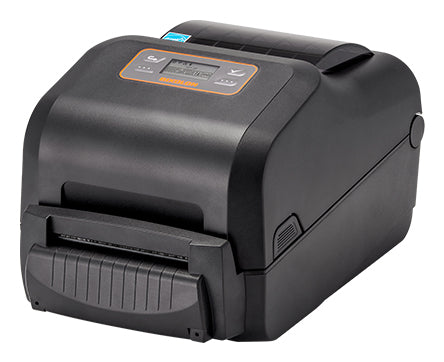

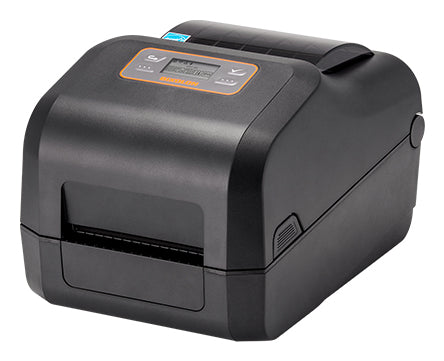

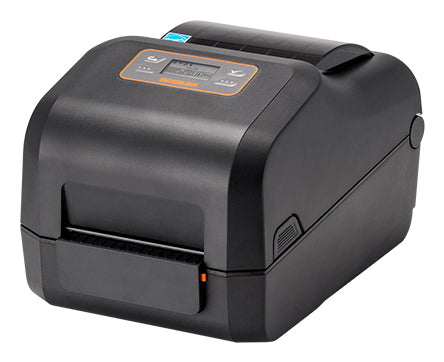

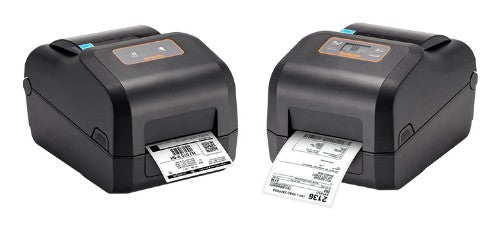

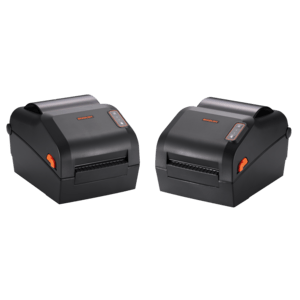

4-inch Thermal Transfer Desktop Label Printer
The mid-tier 4-inch (118 mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74 m and 300 m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.
£266.00
Description
The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS™, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs. Simple out-of-box setup is ensured thanks to the easy media loading of its compact clamshell design with adjustable sensors and real-time calibration across a range of receipt, labels, tag or wristband media. The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.4-inch Thermal Transfer Desktop Label Printer
The mid-tier 4-inch (118 mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74 m and 300 m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Printing | |
| Print speed | 152 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Print technology | Direct thermal / Thermal transfer |
| Maximum print length | 1 m |
| Printable dot numbers | 8 dot |
| Display | |
| Colour display | No |
| Display resolution | 200 x 100 pixels |
| Display | LCD |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Media thickness | 0.06 - 0.2 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum label width | 11.8 cm |
| Autocutter | Yes |
| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| RS-232 ports | 1 |
| Connectivity technology | Wired & Wireless |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android, iOS |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Character sets | 5 BPL-E, 16 BPL-Z, SLCS, Unicode |
| Design | |
| Colour display | No |
| Display resolution | 200 x 100 pixels |
| Display | LCD |
| Product colour | Black |
| Control type | Buttons |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Maximum label width | 11.8 cm |
| Character sets | 5 BPL-E, 16 BPL-Z, SLCS, Unicode |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 284 mm |
| Height | 188 mm |
| Weight | 2.48 kg |
| Packaging content | |
| Cables included | USB |
| Other features | |
| Character sets | 5 BPL-E, 16 BPL-Z, SLCS, Unicode |
