219.5 x 182, 72 x 1200 dpi, CIS, 48-bit, 16 MB SDRAM, USB 2.0, 50 dB, 10 W, 2.5 sec, Grey, 280 x 270 x 42 mm, 1.1 kg
With scan size up to A5, the Avision FB15 is your ideal scanner for scanning passports, driver license, bank check, ID cards, and photos. Based on the innovative CIS (Contact Image Sensor) technology, the FB15 is only 45mm in height and weights a mere 1.1 kg.
No Warm Up Needed and Fast Scan Speed
The LED illumination system not only saves power, it doesn’t require any warm up time. The FB15 is ready to go as soon as you turn it on. It’s fast too! It only takes 1 second to scan an A5 size document.
Advanced settings via TWAIN driver
Avision’s TWAIN user interface provides various image enhancement tools to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!
Automatic Multiple Images Cropping
In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.
£145.00
Key Features
- Scans an A5-size page needs only 1 second ( color, 300 dpi )
- Easy-to-use TWAIN user interface provides various useful features such as auto color detection, color matching, and despeckling to enhance the image quality
- Automatic multiple image cropping creates multiple images in one scan to save your time
- High speed USB 2.0 port
Description

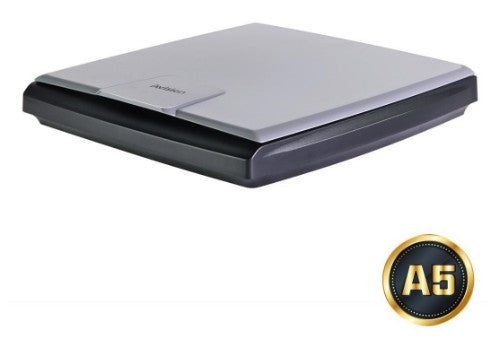

Avision FB15 – A slim, fast and effective flatbed A5 scannerWith scan size up to A5, the Avision FB15 is your ideal scanner for scanning passports, driver license, bank check, ID cards, and photos. Based on the innovative CIS (Contact Image Sensor) technology, the FB15 is only 45mm in height and weights a mere 1.1 kg.
No Warm Up Needed and Fast Scan Speed
The LED illumination system not only saves power, it doesn’t require any warm up time. The FB15 is ready to go as soon as you turn it on. It’s fast too! It only takes 1 second to scan an A5 size document.
Advanced settings via TWAIN driver
Avision’s TWAIN user interface provides various image enhancement tools to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!
Automatic Multiple Images Cropping
In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.
Specifications
| Scanning | |
|---|---|
| Scan speed (colour, high res, A4) | 2.5 sec/page |
| Scan speed (b/w, high res, A4) | 2.5 sec/page |
| Maximum scan size | 219.5 x 182 mm |
| Optical scanning resolution | 72 x 1200 DPI |
| Colour scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Sensor type | CIS |
| Scan file formats | GIF, PDF, TIFF |
| Daily duty cycle (max) | 2500 pages |
| Design | |
| Scanner type | Flatbed scanner |
| Product colour | Grey |
| Performance | |
| Sensor type | CIS |
| Scan file formats | GIF, PDF, TIFF |
| Daily duty cycle (max) | 2500 pages |
| Scan drivers | TWAIN, WIA |
| Scanning noise level | 50 dB |
| Internal memory | 16 MB |
| Built-in processor | Yes |
| Processor operating modes | 32-bit, 64-bit |
| Paper handling | |
| Maximum ISO A-series paper size | A5 |
| Maximum scan area (ADF) | 105 x 148 mm |
| ISO A-series sizes (A0...A9) | A5 |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB port | Yes |
| USB version | 2.0 |
| Software | |
| Windows operating systems supported | Windows 10, Windows Vista, Windows XP |
| Scan drivers | TWAIN, WIA |
| Sound emission | |
| Scanning noise level | 50 dB |
| Power | |
| Power consumption (typical) | 10 W |
| Power consumption (off) | 0.3 W |
| Input voltage | 100 - 240 V |
| Power supply type | AC |
| Output voltage | 5 V |
| Output current | 2 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 270 mm |
| Height | 42 mm |
| Weight | 1.1 kg |
| Processor | |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 16 MB |
| Media formats | |
| ISO A-series sizes (A0...A9) | A5 |
| Technical details | |
| Scanner type | Flatbed scanner |
| Product colour | Grey |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows Vista, Windows XP |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Other features | |
| Scanner type | Flatbed scanner |
