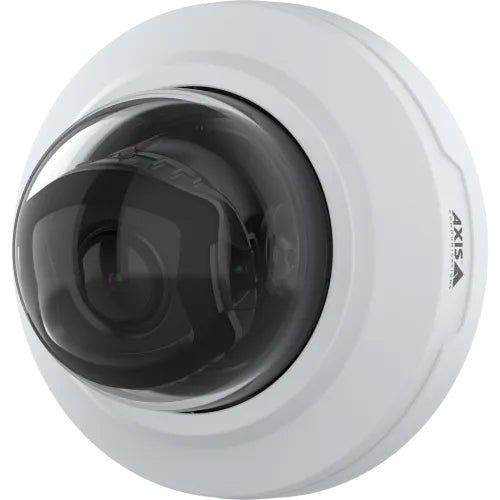

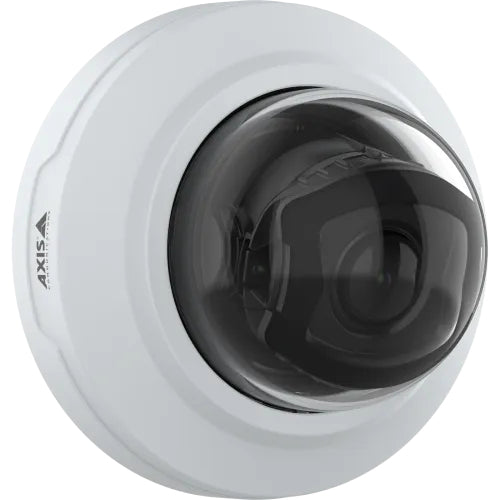

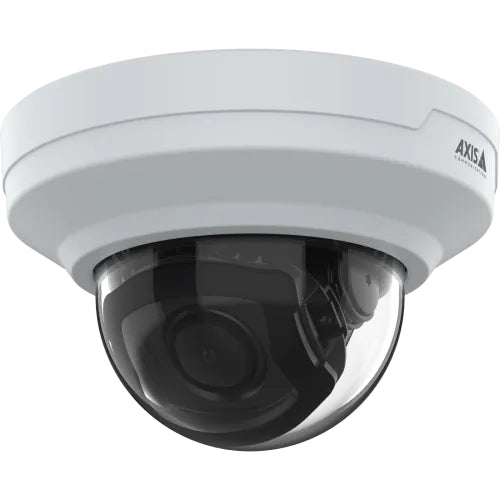

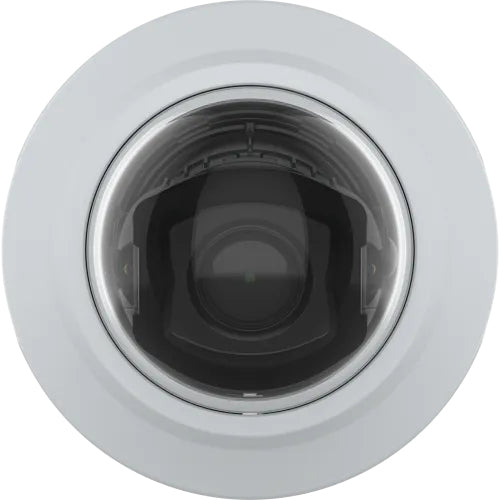

M3098-LV Dome Camera
Capture great image quality even in pitch darkness
AXIS M3098-LV delivers great 4K image quality in all light conditions. Forensic WDR ensures good exposure when there’s both dark and light areas in the scene and sharp color images in low light. Lightfinder delivers true-to-life colors even in low light. And built-in IR illumination enables surveillance in total darkness up to 15 m (49 ft). With a 124° horizontal field of view, it offers wide-area coverage. In addition, corridor format ensures the video is perfectly adapted to monitored corridors. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Unlock AI-powered video and audio analytics
This AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With an acoustic sensor and AXIS Audio Analytics preinstalled, it can detect key sounds, such as screams, shouts, coughing fits, as well as changes in sound level. This IP-device can also trigger automated responses on other devices. What’s more, this camera generates metadata that can be gathered and visualized in a dashboard for valuable insights.
Save more while staying secure
This dome camera offers flexible and discreet installation on walls and ceilings, and the casing simply snaps on – no screws required. It comes with a factory-focused fixed field of view, so there’s no manual focusing required. In addition, direct installation view lets installers see and adjust the camera view in AXIS Installer application on smartphones and tablets using Bluetooth®, without accessing the network. This helps ensure faster, simpler, and more cost-efficient installations.* Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
£597.50
Key Features
- Great image quality in 8 MP
- Compact, discreet design
- Forensic WDR, Lightfinder, and OptimizedIR
- AI-powered audio and video analytics
- Built-in cybersecurity with Axis Edge Vault
Description
This cost-efficient mini dome delivers great 4K image quality in all light conditions. It comes with AI-powered video and audio analytics preinstalled. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device.Capture great image quality even in pitch darkness
AXIS M3098-LV delivers great 4K image quality in all light conditions. Forensic WDR ensures good exposure when there’s both dark and light areas in the scene and sharp color images in low light. Lightfinder delivers true-to-life colors even in low light. And built-in IR illumination enables surveillance in total darkness up to 15 m (49 ft). With a 124° horizontal field of view, it offers wide-area coverage. In addition, corridor format ensures the video is perfectly adapted to monitored corridors. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Unlock AI-powered video and audio analytics
This AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With an acoustic sensor and AXIS Audio Analytics preinstalled, it can detect key sounds, such as screams, shouts, coughing fits, as well as changes in sound level. This IP-device can also trigger automated responses on other devices. What’s more, this camera generates metadata that can be gathered and visualized in a dashboard for valuable insights.
Save more while staying secure
This dome camera offers flexible and discreet installation on walls and ceilings, and the casing simply snaps on – no screws required. It comes with a factory-focused fixed field of view, so there’s no manual focusing required. In addition, direct installation view lets installers see and adjust the camera view in AXIS Installer application on smartphones and tablets using Bluetooth®, without accessing the network. This helps ensure faster, simpler, and more cost-efficient installations.* Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Design | |
| IK code | IK08 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP42 |
| Camera | |
| Minimum illumination | 0.05 lx |
| Tilt angle range | -10 - 57° |
| Pan range | -175 - 175° |
| Angle of rotation | 350° |
| Camera shutter speed | 1/66000 - 1/5 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 124° |
| Lens viewing angle, vertical | 66° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Detect distance | 75 m |
| Observe distance | 30 m |
| Recognize distance | 15 m |
| Identify distance | 8 m |
| Focal length range | 3.76 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 3840 x 2160 pixels |
| Frame rate | 15 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Video intelligence analytic | Yes |
| Audio | |
| Audio detection | Yes |
| Network | |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 2000 MB |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection, Line crossing detection, Region entrance detection, Moving object |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 5.9 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 206 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265 |
