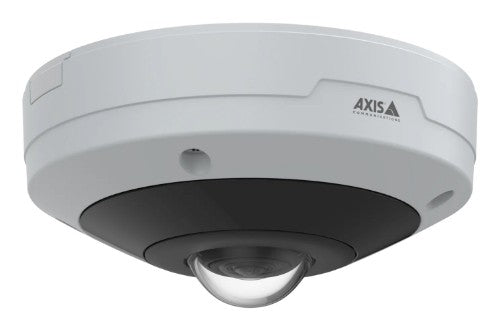

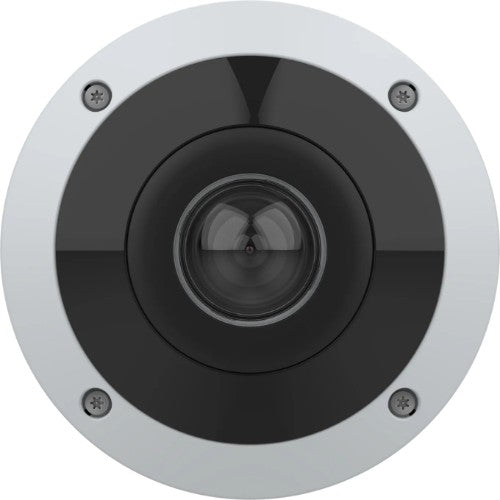

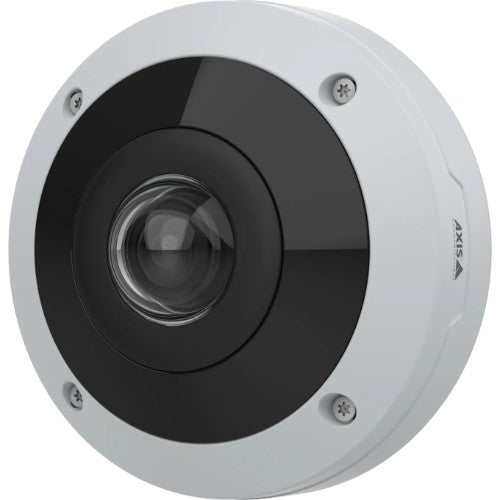

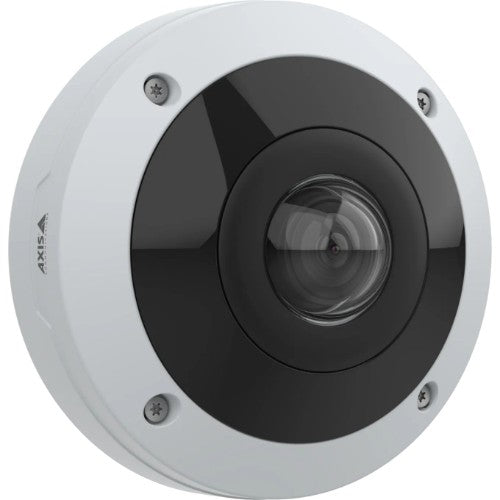

Panoramic Camera 12 MP outdoor-ready with 360° view and audio analytics
Sharp images with great details
Using the latest sensor technology, AXIS M4348-PLVE offers 30% higher resolution than previous generations, reaching up to 3536x3536 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.
Powerful video and audio analytics
This AI-based camera comes with AXIS Object Analytics preinstalled to detect, classify, track, and count objects. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With built-in microphones and AXIS Audio Analytics preinstalled, it can detect critical sounds such as glass breaking, screams, and shouts, and measure noise pollution. Plus, directional audio detection provides the direction of the audio source and a visual overlay showing exactly where the sound is coming from.
Secure and easy- indoors and out
AXIS M4348-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. It’s also delivered factory-focused for ease of installation. And it’s discreet, compact, flat design blends seamlessly into any environment. What’s more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).
£1,211.25
Key Features
- Latest sensor technology with 12 MP resolution
- Camera-side dewarped views
- Built-in IR with individual IR LEDs
- Next-generation video and audio analytics
- Built-in cybersecurity with Axis Edge Vault
Description
This AI-powered camera uses the latest sensor technology to provide high-quality image resolution 24/7. It includes camera-side dewarped views. And with AXIS Audio Analytics, you’ll know whenever something relevant happens, even when there's no visual indication.Sharp images with great details
Using the latest sensor technology, AXIS M4348-PLVE offers 30% higher resolution than previous generations, reaching up to 3536x3536 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.
Powerful video and audio analytics
This AI-based camera comes with AXIS Object Analytics preinstalled to detect, classify, track, and count objects. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With built-in microphones and AXIS Audio Analytics preinstalled, it can detect critical sounds such as glass breaking, screams, and shouts, and measure noise pollution. Plus, directional audio detection provides the direction of the audio source and a visual overlay showing exactly where the sound is coming from.
Secure and easy- indoors and out
AXIS M4348-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. It’s also delivered factory-focused for ease of installation. And it’s discreet, compact, flat design blends seamlessly into any environment. What’s more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).
Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 19 |
| Languages support | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Processor model | ARTPEC-9 |
| PTZ modes | Preset point, Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Polycarbonate (PC), Aluminium |
| Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/111000 - 2 s |
| Camera pixel size | 2 µm |
| Lens viewing angle, horizontal | 185° |
| Lens viewing angle, vertical | 185° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.6 mm (1 / 1.6") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.1 m |
| Fixed focal length | 1.7 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Saturation, Contrast, Brightness, White balance, Mirror |
| Privacy masking | Yes |
| Gain control type | Auto |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | H.264, MPEG4, H.265, M-JPEG, AV1 |
| Maximum resolution | 3536 x 3536 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 12 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Built-in microphone | Yes |
| Audio formats supported | LPCM, AAC, AAC-LC, G.711, G.726, OPUS |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | Pv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDXC, MicroSDHC |
| Internal memory | 4000 MB |
| Flash memory | 8000 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Security algorithms | FIPS 140-2, FIPS 140-3, AES, 802.1x RADIUS, EAP-TLS, PEAP, MSCHAPv2, HTTPS, TLS |
| Management features | |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE, DC |
| Power consumption (max) | 16.7 W |
| Power consumption (typical) | 7.1 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 70 mm |
| Diameter | 14.9 cm |
| Weight | 880 g |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC), cUL, UL, CE, KC, RCM, VCCI, Electromagnetic Compatibility (EMC), ICES, RoHS, REACH |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Iris | Yes |
| Doesn't contain | PVC, Brominated Flame Retardant (BFR), CFR |
| Compliance certificates | Federal Communications Commission (FCC), cUL, UL, CE, KC, RCM, VCCI, Electromagnetic Compatibility (EMC), ICES, RoHS, REACH |
| Other features | |
| Video compression formats | H.264, MPEG4, H.265, M-JPEG, AV1 |
| Doesn't contain | PVC, Brominated Flame Retardant (BFR), CFR |
