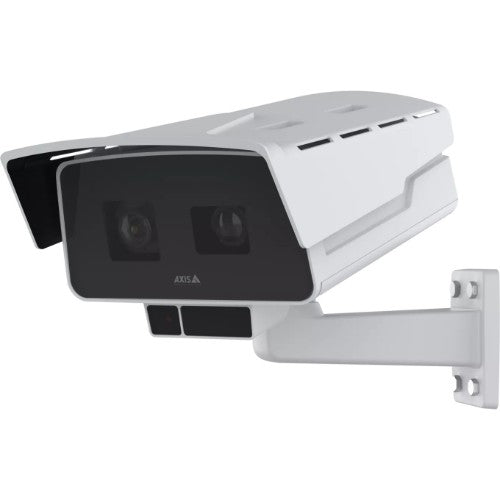

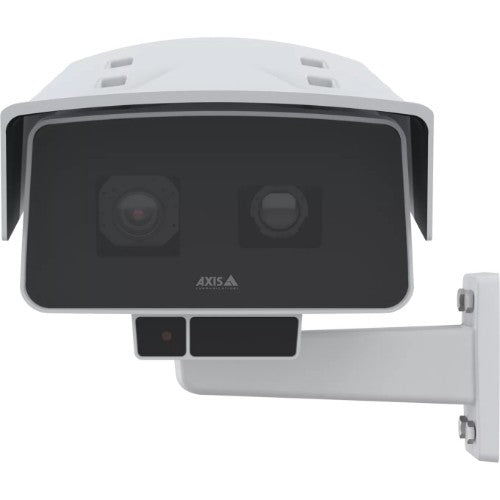

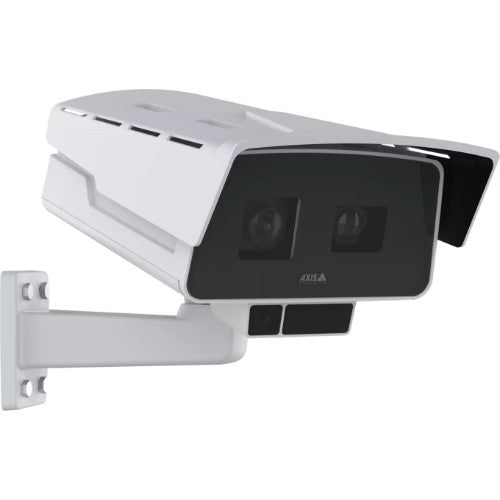

CMOS 1/1.2", 3840x2160, IK10, IP66/IP67, 13.3 W, Box Camera
Ideal for building and perimeter protection, this dual-sensor, AI-powered box camera offers both wide-angle and close-up views of the same scene. It delivers excellent image quality under any light conditions.
Excellent wide-angle and close-up images 24/7
AXIS P1518-LE lets you see it all. With two sensors, you get two different views in one camera. One 1/1.2” image sensor offers exceptional low-light sensitivity and 8 MP at 30 fps for excellent wide-angle images in all light conditions. The other 1/2.8” sensor delivers 2 MP at 60 fps for close-up images without motion blur. Ideal at entrances and property fences, you can monitor the wide-angle overview and get a close-up view of anyone approaching. Lightfinder 2.0 and Forensic WDR ensure true colors and great forensic detail in challenging light or near darkness. And OptimizedIR enables surveillance in total darkness.
Smart investment: cost-efficient and robust
AXIS P1518-LE offers easy installation with low total cost of ownership. That’s because there’s only one camera to install, one cable to draw, one IP address, one VMS license, and one license for any analytics you choose to install. Plus, you only need to maintain one camera. And the tele lens offers fast and accurate installation thanks to its remote zoom and focus capabilities, combined with remote pan and tilt settings for minor adjustments. Robust and outdoor-ready, it can be installed, for instance, at intersections to monitor traffic flow and capture vehicle details. Furthermore, this IP66-, IP67-, IK10- and NEMA 4X-rated camera can withstand hurricane winds up to 60 m/s (134 mph).
AI-powered analytics with strong security
This high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. With AXIS Object Analytics preinstalled, it can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, Axis Edge Vault, a hardware-based cyber-security platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
£2,027.50
Key Features
- Two sensors for wide-angle and close-up views
- Excellent image quality in any light
- AI-powered analytics
- Low Total Cost of Ownership (TCO)
- Built-in cybersecurity with Axis Edge Vault
Description
Wide-angle and close-up views in one with IRIdeal for building and perimeter protection, this dual-sensor, AI-powered box camera offers both wide-angle and close-up views of the same scene. It delivers excellent image quality under any light conditions.
Excellent wide-angle and close-up images 24/7
AXIS P1518-LE lets you see it all. With two sensors, you get two different views in one camera. One 1/1.2” image sensor offers exceptional low-light sensitivity and 8 MP at 30 fps for excellent wide-angle images in all light conditions. The other 1/2.8” sensor delivers 2 MP at 60 fps for close-up images without motion blur. Ideal at entrances and property fences, you can monitor the wide-angle overview and get a close-up view of anyone approaching. Lightfinder 2.0 and Forensic WDR ensure true colors and great forensic detail in challenging light or near darkness. And OptimizedIR enables surveillance in total darkness.
Smart investment: cost-efficient and robust
AXIS P1518-LE offers easy installation with low total cost of ownership. That’s because there’s only one camera to install, one cable to draw, one IP address, one VMS license, and one license for any analytics you choose to install. Plus, you only need to maintain one camera. And the tele lens offers fast and accurate installation thanks to its remote zoom and focus capabilities, combined with remote pan and tilt settings for minor adjustments. Robust and outdoor-ready, it can be installed, for instance, at intersections to monitor traffic flow and capture vehicle details. Furthermore, this IP66-, IP67-, IK10- and NEMA 4X-rated camera can withstand hurricane winds up to 60 m/s (134 mph).
AI-powered analytics with strong security
This high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. With AXIS Object Analytics preinstalled, it can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, Axis Edge Vault, a hardware-based cyber-security platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CSA, UL/cUL, CE, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 50121-3-2, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62261 risk group exempt, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NIST SP500-267, ETSI EN 303 645, BSI IT Security Label, FIPS 140 |
| Design | |
| IK code | IK10 |
| Form factor | Box |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic |
| Camera | |
| Minimum illumination | 0.01 lx |
| Tilt angle range | 15 - 15° |
| Pan range | -15 - 15° |
| Angle of rotation | 270° |
| Camera shutter speed | 1/66,500 to 2 |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 114 - 46° |
| Lens viewing angle, vertical | 62 - 26° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors | 2 |
| Lens system | |
| Number of lenses | 2 |
| Maximum aperture number | 1.5 |
| Auto focus | Yes |
| Closest focusing distance | 1 m |
| Minimum aperture number | 2.9 |
| Zoom capability | Yes |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness, White balance |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Adaptive Bit Rate (ABR), Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, MJPG |
| Supported graphics resolutions | 3840 x 2160, 2592 x 1944, 1280 x 800, 1280 x 960, 480 x 270, 640 x 400, 320 x 240 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Audio | |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, G.711, G.726, LPCM, OPUS |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 2048 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Alert notification type | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 25.5 W |
| Power consumption (typical) | 13.2 W |
| Certificates | |
| Certification | CSA, UL/cUL, CE, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 50121-3-2, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62261 risk group exempt, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NIST SP500-267, ETSI EN 303 645, BSI IT Security Label, FIPS 140 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 3.85 kg |
| Sustainability | |
| Compliance certificates | CSA, CE, EAC, KC, RCM, REACH, RoHS, TAA, VCCI, UL |
| Packaging content | |
| Number of cameras | 2 |
| Manual | No |
| Technical details | |
| Doesn't contain | PVC |
| Compliance certificates | CSA, CE, EAC, KC, RCM, REACH, RoHS, TAA, VCCI, UL |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Doesn't contain | PVC |
