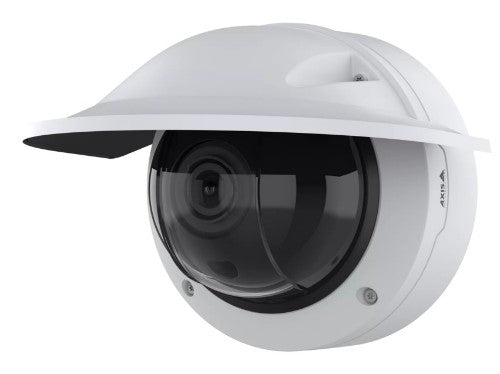

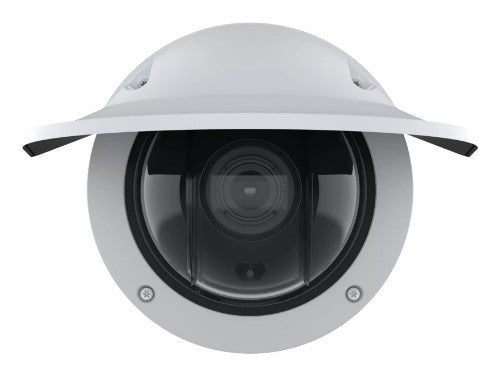

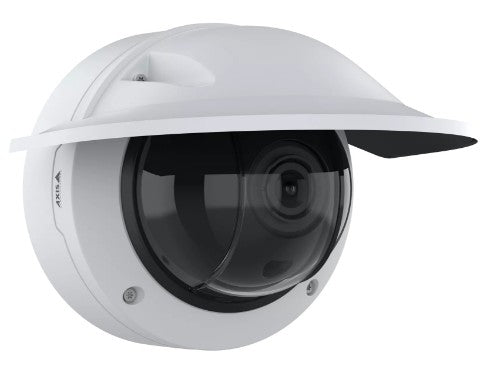

Dome, 8 MP, CMOS, 3840 x 2160, IP66/IP6K9K, IK10, DC/PoE
Outstanding image quality
AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
Powerful video and audio analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
£1,810.00
Key Features
- Outstanding image quality in 8 MP
- Next-generation AI-powered analytics
- R-shielded dome to prevent reflections
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
Description
Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. Furthermore, AXIS Audio Analytics can detect critical sounds, adding an extra layer of security.Outstanding image quality
AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
Powerful video and audio analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Processor model | ARTPEC-9 |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in processor | Yes |
| Dynamic range | 120 dB |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/Wall/Pole |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP6K9K |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.007 lx |
| Tilt angle range | -42 - 80° |
| Pan range | -180 - 180° |
| Angle of rotation | 180° |
| Camera shutter speed | 1/67500 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 104 - 50° |
| Lens viewing angle, vertical | 56 - 28° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors | 1 |
| Lens system | |
| Maximum aperture number | 2.9 |
| Auto focus | Yes |
| Recognize distance (wide) | 18 m |
| Recognize distance (tele) | 36 m |
| Observe distance (wide) | 35 m |
| Observe distance (tele) | 71 m |
| Identify distance (wide) | 9 m |
| Identify distance (tele) | 18 m |
| Detect distance (wide) | 88 m |
| Detect distance (tele) | 178 m |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 2x |
| Focal length range | 6.3 - 13 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, White balance |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video compression formats | AV1, H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Video recording | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| Video motion detection | Yes |
| Pixel counter | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 6.9 W |
| DC-in jack | Yes |
| DC output voltage | 8, 9, 10, 12, 15, 16, 24, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 2.31 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Other features | |
| Video compression formats | AV1, H.264, H.265, M-JPEG |
