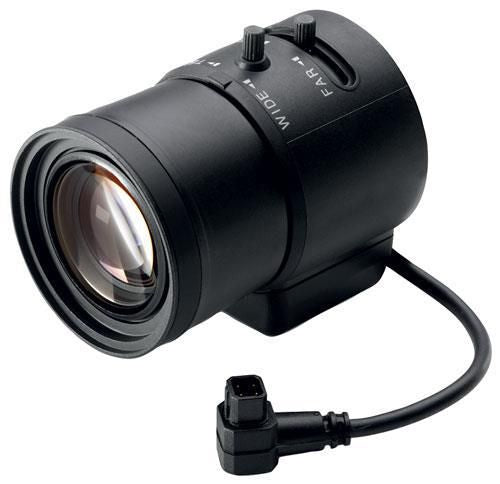

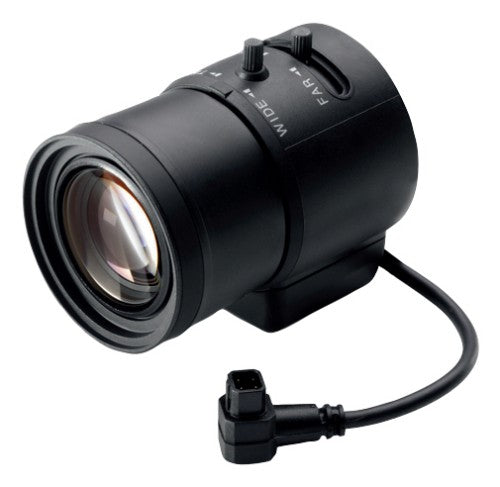

Varifocal lens, 2.7-13mm, 3MP, CS mount
This lens comes with a standard CS mount for use with a variety of cameras. The P-iris control connection is a four-pin standard plug that fits directly into the camera’s iris output. This lens delivers impressive optical quality due to its megapixel resolution, contrast reproduction, and coating. The mechanical construction is designed to withstand both frequent iris control operations and the environmental stress of security installations. It provides long and reliable operation with no maintenance. For flexible, high-quality, reliable lenses that match an HD camera’s performance, this lens is the ideal solution.
£153.75
Key Features
- High-quality optics
- Reliable, robust construction
- Focal length options
Description
As surveillance cameras can now capture even higher picture resolutions through the use of HD sensor technology and advanced processing, the lenses also need to have an optical resolution that allows the camera to work at its optimal point. This lens is designed to provide improved image resolution and sharpness, and better depth of field.This lens comes with a standard CS mount for use with a variety of cameras. The P-iris control connection is a four-pin standard plug that fits directly into the camera’s iris output. This lens delivers impressive optical quality due to its megapixel resolution, contrast reproduction, and coating. The mechanical construction is designed to withstand both frequent iris control operations and the environmental stress of security installations. It provides long and reliable operation with no maintenance. For flexible, high-quality, reliable lenses that match an HD camera’s performance, this lens is the ideal solution.
Specifications
| Features | |
|---|---|
| Brand compatibility | Bosch |
| Type | Lens |
| Placement supported | Outdoor |
| Product colour | Black |
| Lens mount interface | CS mount |
| Image sensor size | 1/2.7" |
| Focal length range | 2.7 - 13 mm |
| Viewing angle, horizontal | 102° |
| Viewing angle, vertical | 74° |
| Megapixel (approx.) | 3 MP |
| Image sensor | |
| Lens mount interface | CS mount |
| Image sensor size | 1/2.7" |
| Focal length range | 2.7 - 13 mm |
| Viewing angle, horizontal | 102° |
| Viewing angle, vertical | 74° |
| Megapixel (approx.) | 3 MP |
| Technical details | |
| Type | Lens |
| Placement supported | Outdoor |
| Weight & dimensions | |
| Diameter | 4.7 cm |
| Length (max) | 7.51 cm |
| Weight | 87 g |
| Colour | |
| Product colour | Black |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 60% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -10 - 50 °C |
