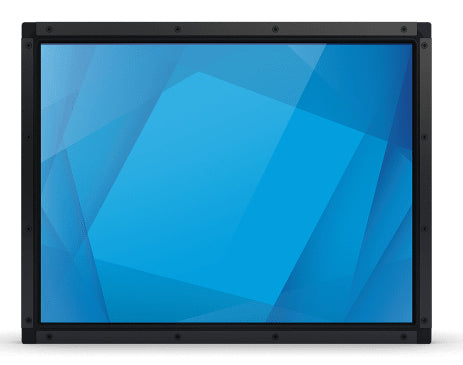

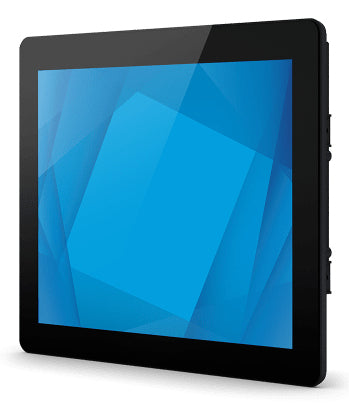

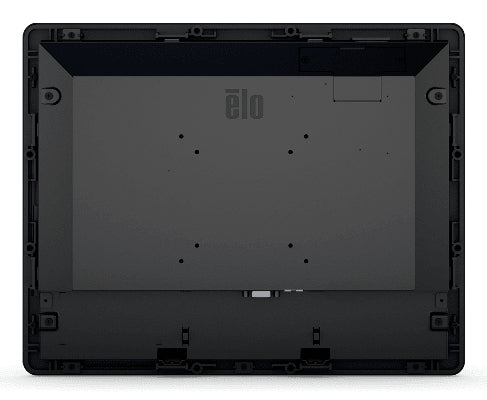

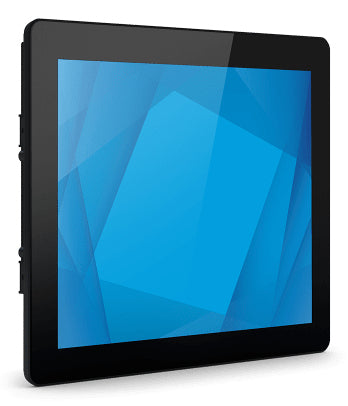

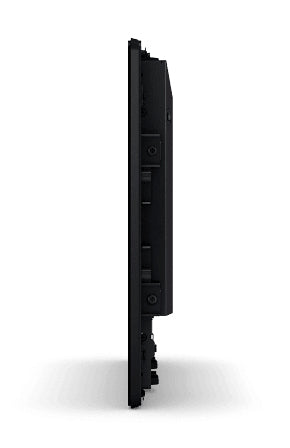

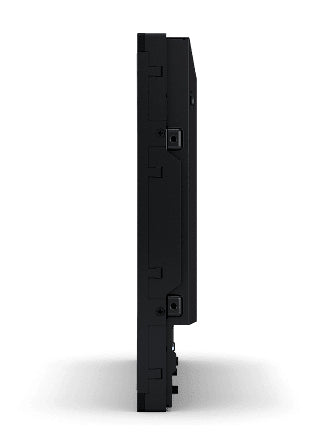

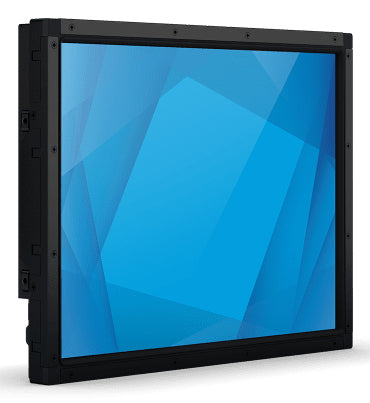

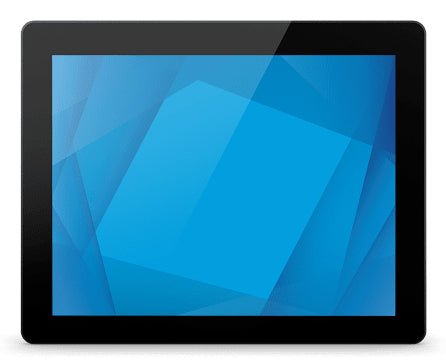

15" Open Frame Touchscreen, Active matrix TFT LCD (LED), with Bezel
Enabling Partners to Build Smarter Kiosks
With EloView and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
The 1590L can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
£431.40
Description
The Elo 1590L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, the 1590L open frame deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.Enabling Partners to Build Smarter Kiosks
With EloView and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
The 1590L can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 225 cd/m² |
| Response time | 16 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 60 kHz |
| Touchscreen technology | Capacitive |
| Touch response time | 23 ms |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| USB connector type | USB Type-B |
| DisplayPort version | 1.1a |
| USB port | Yes |
| HDMI version | 1.3 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Product design | Interactive flat panel |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Purpose | Commercial |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (sleep) | 1.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 12.5 W |
| Weight & dimensions | |
| Display width | 336.4 mm |
| Display depth | 264.4 mm |
| Display height | 41.9 mm |
| Display weight | 2.9 kg |
| Packaging data | |
| Package width | 434 mm |
| Package depth | 175 mm |
| Package height | 375 mm |
| Package weight | 4.7 kg |
| Cables included | VGA, HDMI, USB |
| Packaging content | |
| Cables included | VGA, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-B |
| DisplayPort version | 1.1a |
| Compliance certificates | RoHS |
| Network | |
| Ethernet LAN | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| USB connector type | USB Type-B |
| DisplayPort version | 1.1a |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| DC-in jack | Yes |
