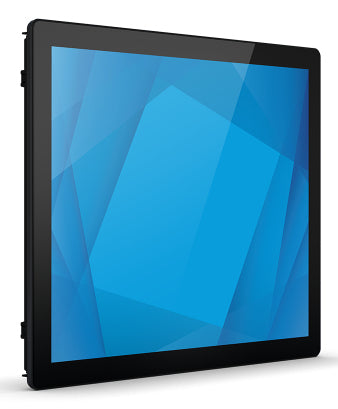

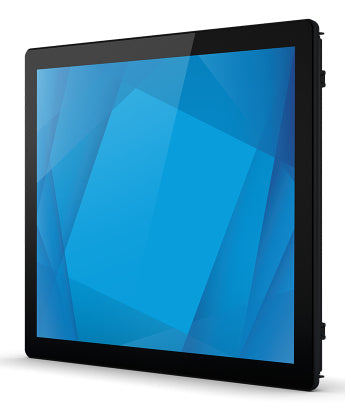

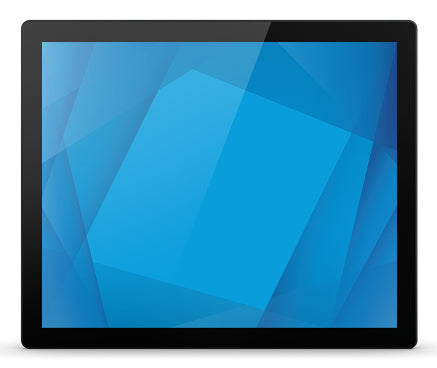

19" LCD (LED) 1280x1024, PCAP (TouchPro Projected Capacitive) 10 Touch, HDMI, VGA, Display Port
The Elo 1991L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
With EloView™ and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro™ PCAP technology supports touch thru
functionality for installations that require a front layer of glass with
thickness’s up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open
Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming
cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
£558.00
Description
Elo 1991L Open Frame Touchscreen DisplayThe Elo 1991L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
With EloView™ and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro™ PCAP technology supports touch thru
functionality for installations that require a front layer of glass with
thickness’s up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open
Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming
cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Panel type | TFT-LCD |
| Display number of colours | 16.78 million colours |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 225 cd/m² |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 82 kHz |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Capacitive |
| Ports & interfaces | |
| USB port | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | Black |

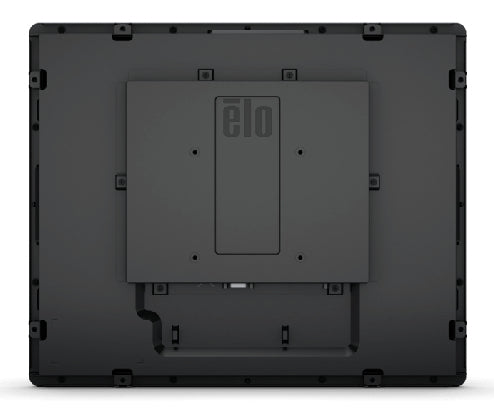

| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Purpose | Commercial |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 17 W |
| Weight & dimensions | |
| Display width | 414.7 mm |
| Display depth | 342.7 mm |
| Display height | 50 mm |
| Display weight | 4.6 kg |
| Packaging data | |
| Package width | 526 mm |
| Package depth | 174 mm |
| Package height | 450 mm |
| Package weight | 7.4 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Panel type | TFT-LCD |
| Weight (without stand) | 4.6 kg |
| Full HD | No |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Panel type | TFT-LCD |
| Weight (without stand) | 4.6 kg |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LED |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 82 kHz |
| Built-in camera | No |
| Aspect ratio | 5:4 |
| Maximum refresh rate | 60 Hz |
