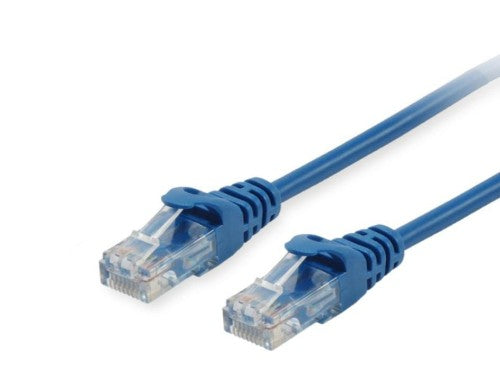

Cat.6A U/UTP Patch Cable, 1.5m, Blue
£1.53
Key Features
- 4 x 2 AWG 26/7
- Unshielded
- 500MHz performance Bandwidth
- Transmission: 10Gbit
- Suitable for PoE, PoE+
- Stranded bare copper conductor
- Molded boot with Strain relief
- RoHS compliant
- Low Smoke Zero Halogen (LSZH/LSOH)
- Compliant with ISO/IEC 11801 and EN 50173
Description
The equip® Cat.6A U/UTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.Specifications
| Technical details | |
|---|---|
| Product colour | Blue |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 1.5 m |
| Country of origin | China |
| Compliance certificates | RoHS |
| Features | |
| Product colour | Blue |
| Country of origin | China |
| Conductor material | Copper |
| Molded cable boot | Yes |
| Frequency | 500 MHz |
| AWG wire size | 26/7 |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 1.5 m |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power over Ethernet (PoE) | Yes |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Power over Ethernet (PoE) type supported | PoE+ |
| Weight & dimensions | |
| Weight | 45.31 g |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 275 mm |
| Package type | Polybag |
| Package weight | 52.7 g |
| Logistics data | |
| Master (outer) case gross weight | 13.9 kg |
| Products per master (outer) case | 250 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 350 mm |
| Customs product code (TARIC) | 85444210 |
| Other features | |
| Package type | Polybag |
