1/2.8" CMOS, 2MP, 1920x1080px, IP66, PoE

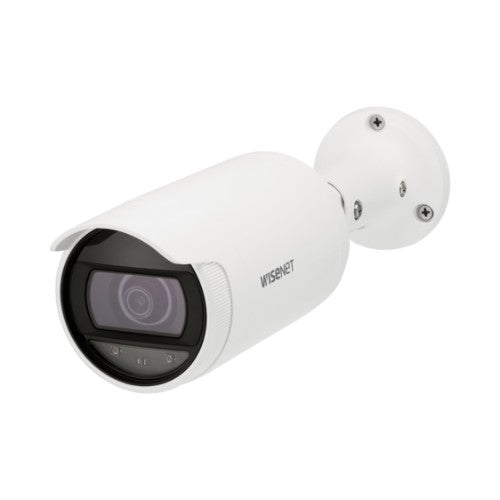

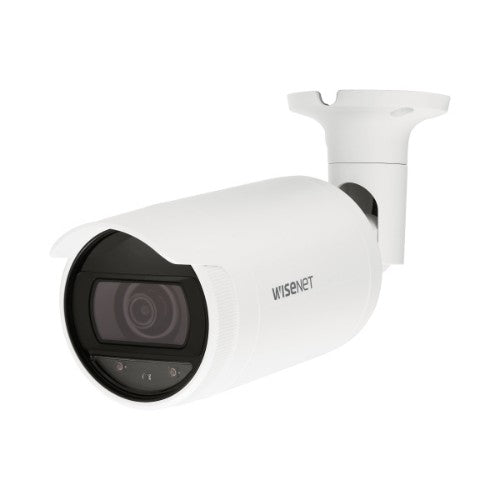

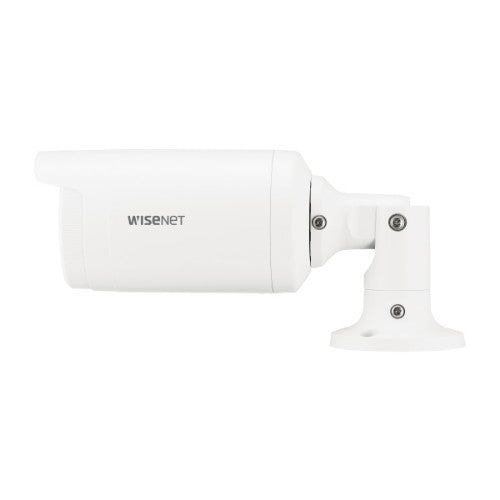

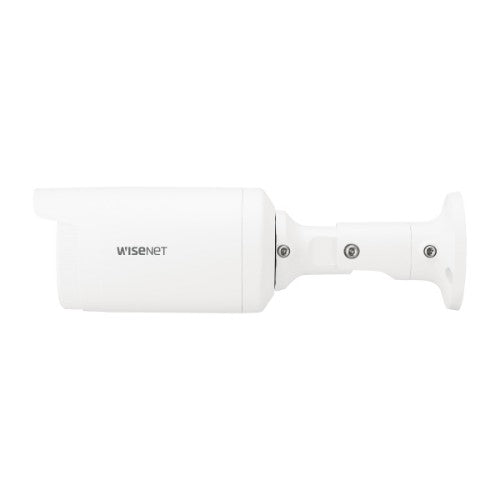

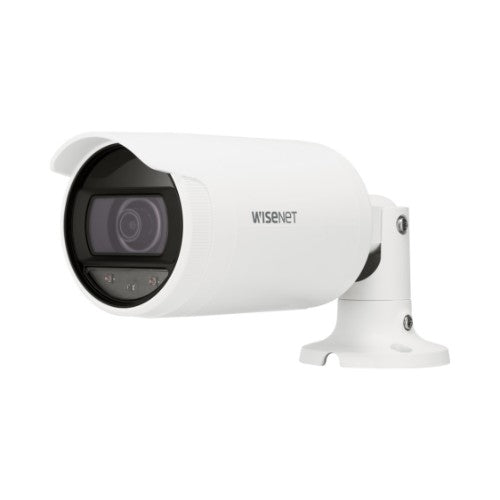

2MP IR Bullet Camera
£121.25
Description
ANO-L6012R2MP IR Bullet Camera
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Bullet |
| Product colour | Black, White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.03 lx |
| Tilt angle range | 0 - 100° |
| Pan range | 0 - 360° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 360° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/12000 s |
| Lens viewing angle, horizontal | 114° |
| Lens viewing angle, vertical | 62° |
| Lens viewing angle, diagonal | 135° |
| Number of Privacy masking areas | 6 |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Detect distance | 25.1 m |
| Observe distance | 10 m |
| Recognize distance | 5 m |
| Identify distance | 3.8 m |
| Fixed focus | Yes |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Gain control type | Manual |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Storage | |
| Maximum memory card size | 32 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Defocus, Line crossing detection, Region entrance detection, Region exiting detection |
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2, SRTP |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 6.4 W |
| Power consumption (typical) | 5 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -30 - 55 °C |
| Weight & dimensions | |
| Width | 78 mm |
| Depth | 262 mm |
| Height | 78 mm |
| Weight | 390 g |
| Packaging content | |
| Number of cameras | 1 |
