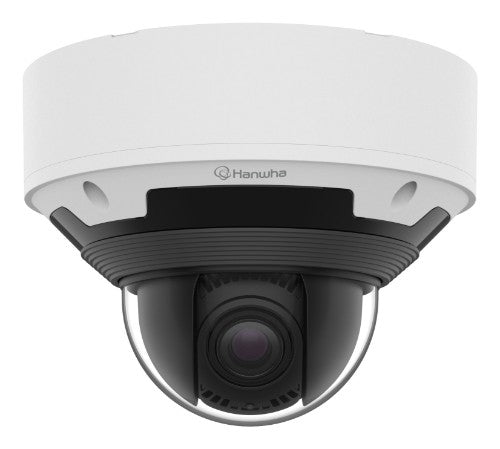

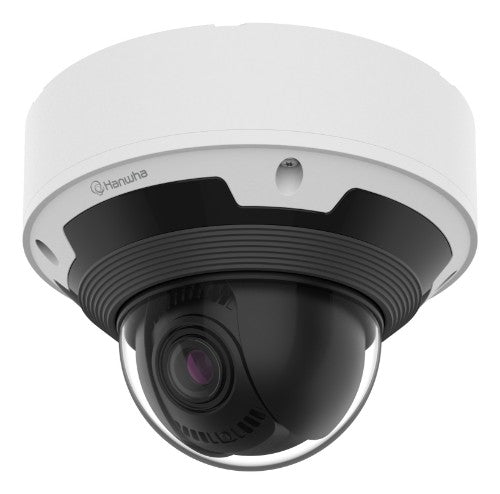

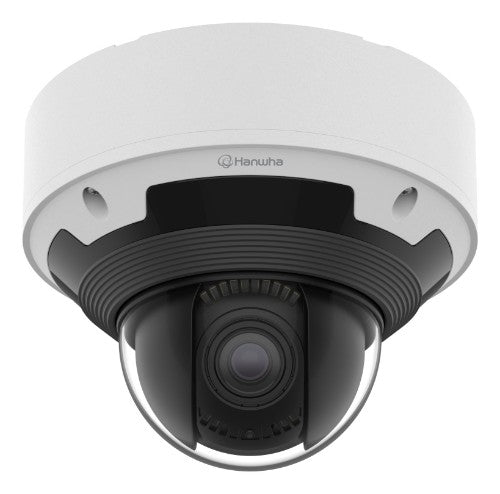

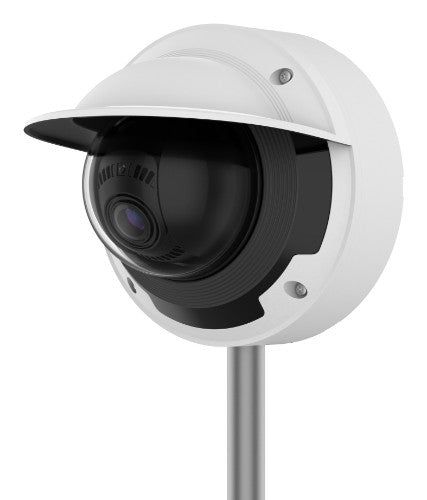

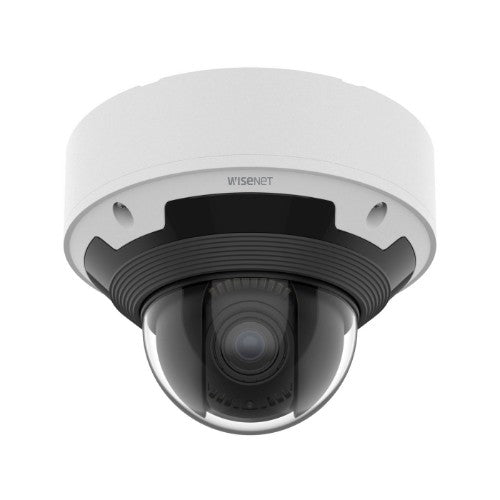

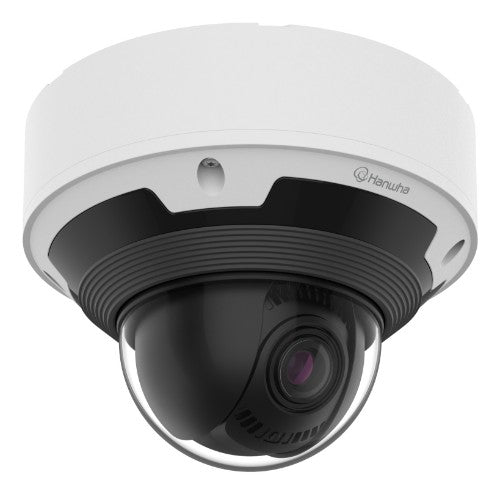

Hanwha 6MP AI IR Vandal Dome Camera

Skip to product information
Hanwha 6MP AI IR Vandal Dome Camera
1/6
  • Hanwha 6MP AI IR Vandal Dome Camera
  • Hanwha 6MP AI IR Vandal Dome Camera
  • Hanwha 6MP AI IR Vandal Dome Camera
  • Hanwha 6MP AI IR Vandal Dome Camera
  • Hanwha 6MP AI IR Vandal Dome Camera
  • Hanwha 6MP AI IR Vandal Dome Camera
Hanwha 6MP AI IR Vandal Dome Camera
£1,055.00
6MP, 1/1.8", CMOS, 3328x1872, Auto(ICR), IR LED, 850nm, RJ-45(10/100/1000BASE-T), 4GB RAM, 512BM Flash, PoE+, 12.1W, IP66/Ip67/IP6K9K, IK10+, Aluminum, White, 180x135mm, 2kg

Key Features

  • 6MP resolution
  • • 4.4~9.3mm (2.1x) motorized varifocal
  • • Color: 0.03Lux(F1.3, 1/30sec, 30IRE), BW - 0Lux(IR LED on)
  • • Maximum 30 fps (H.265/H.264)
  • • IR viewable length: 15m (49.21ft), 30m(98.43ft) based on scene
  • • Day & Night (ICR), extremeWDR (120 dB)
  • • Hard-coated dome bubble
  • • WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
  • • Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
  • IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • • Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear
  • • IP66/IP67/IP6K9K, NEMA4X, IK10+

Description

Specifications

Performance
Fog proof Yes
Type IP security camera
Connectivity technology Wired
Placement supported Indoor & outdoor
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Certification FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Built-in light Yes
Dynamic range 120 dB
Design
IK code IK10+
Fog proof Yes
Form factor Dome
Product colour White
Mounting type Ceiling
Protection features Vandal proof
International Protection (IP) code IP66, IP67, IP6K9K
Housing material Aluminium
Camera
Minimum illumination 0.003 lx
Tilt angle range 0 - 85°
Pan range 0 - 350°
White balance ATW, AWC, Manual, Indoor, Outdoor, Narrow ATW
Angle of rotation 340°
Camera shutter type Electronic
Camera shutter speed 2 - 1/12000 s
Lens viewing angle, horizontal 113 - 47°
Lens viewing angle, vertical 58 - 26°
Lens viewing angle, diagonal 138 - 54°
Number of Privacy masking areas 32
Image sensor
Sensor type CMOS
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Lens system
Number of lenses 1
Maximum aperture number 1.3
Recognize distance (wide) 8.8 m
Recognize distance (tele) 30.6 m
Observe distance (wide) 17.6 m
Observe distance (tele) 61.2 m
Identify distance (wide) 4.4 m
Identify distance (tele) 15.3 m
Detect distance (wide) 44.1 m
Detect distance (tele) 153.1 m
Closest focusing distance 0.5 m
Minimum aperture number 2.15
Focus Manual
Zoom capability Yes
Optical zoom 2.1x
Focal length range 4.4 - 9.3 mm
Night vision
Night vision Yes
Infra-red wavelength 850 nm
Video
Noise reduction Yes
Privacy masking Yes
Flip & mirror Yes
Image stabilizer Yes
Gain control type Manual
Highlight Compensation (HLC) Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC) Yes
Noise reduction technology Smart Super Noise Reduction V (SSNR V)
Video compression formats H.265, H.264, M-JPEG
Maximum resolution 3328 x 1872 pixels
Video formats supported H.265, H.264, M-JPEG
Supported graphics resolutions 3072 x 1728, 2688 x 1520, 2592 x 1944, 1600 x 1200, 1280 x 960, 800 x 448, 720 x 576, 720 x 480, 640 x 360, 320 x 240, 1920 x 1080 (HD 1080)
Supported video modes 240p, 360p, 480p, 576p, 600p, 768p, 720p, 960p, 1024p, 1200p, 1080p, 1944p, 1520p
Frame rate 30 fps
Video streaming Yes
Total megapixels 6 MP
Audio
Audio detection Yes
Network
Bluetooth No
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Networking standards IEEE 802.1x, IEEE 802.3at
Number of users 20 user(s)
Streaming method Multicast, Unicast
Ethernet LAN Yes
Cabling technology 10/100/1000Base-T(X)
Wi-Fi No
Supported network protocols IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Storage
Maximum memory card size 512 GB
Card reader integrated Yes
Built-in HDD No
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory 512 MB
RAM capacity 4000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Security
Alert notification type E-mail
Intelligent Video Surveillance (IVS) system features People counting
Video motion detection Yes
HTTPS encryption Yes
Human and vehicle targets classification Yes
Digest authentication Yes
Power
Power source type PoE
Power consumption (max) 22.5 W
Power consumption (Power over Ethernet (PoE)) 12.1 W
Certificates
Certification FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Operational conditions
Operating temperature (T-T) -50 - 55 °C
Storage temperature (T-T) -50 - 60 °C
Operating relative humidity (H-H) 0 - 100%
Storage relative humidity (H-H) 0 - 90%
Weight & dimensions
Height 135 mm
Diameter 18 cm
Weight 2 kg
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Sustainability
Compliance certificates CE, EAC, National Defense Authorization Act (NDAA), Federal Communications Commission (FCC), cULus
Packaging content
Number of cameras 1
Memory card included No
Technical details
Compliance certificates CE, EAC, National Defense Authorization Act (NDAA), Federal Communications Commission (FCC), cULus
Other features
Focus Manual
Video compression formats H.265, H.264, M-JPEG
Data transfer rate 1000 Mbit/s
