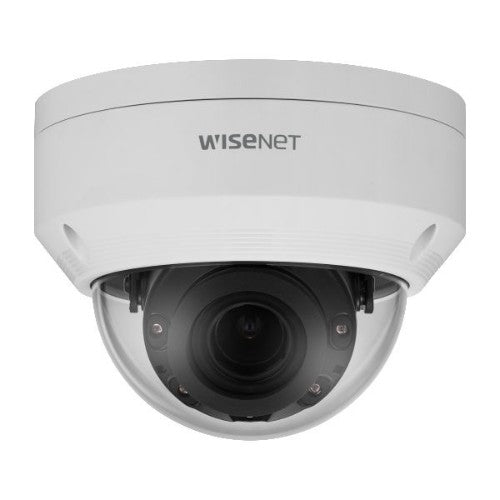

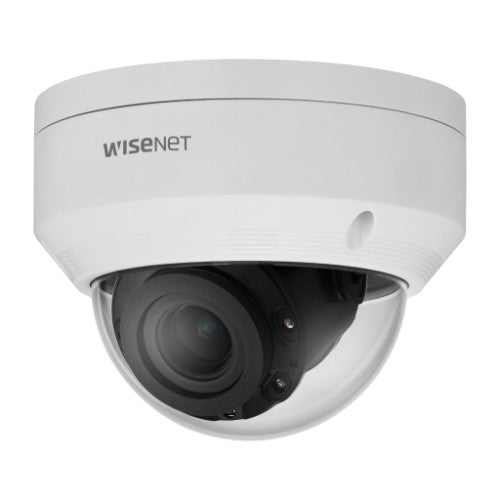

Hanwha ANV-L6082R, IP security camera, Indoor & outdoor, Wired, Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian,..., Ceiling, White
£180.00
Description
Hanwha ANV-L6082R. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 106°, Lens viewing angle, vertical: 55°, Lens viewing angle, diagonal: 127°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Lens diameter (wide): 3.3 mm, Lens diameter (tele): 1.03 cmSpecifications
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Plastic |
| Camera | |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 350° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 2~1/12000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 127° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 3.3 |
| Recognize distance (wide) | 5.3 m |
| Recognize distance (tele) | 14.1 m |
| Observe distance (wide) | 10.6 m |
| Observe distance (tele) | 28.1 m |
| Identify distance (wide) | 2.7 m |
| Identify distance (tele) | 7 m |
| Detect distance (wide) | 26.5 m |
| Detect distance (tele) | 70.3 m |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 3.1x |
| Lens diameter (wide) | 3.3 mm |
| Lens diameter (tele) | 1.03 cm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction (SSNR) |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1280 x 960, 1280 x 1024 (SXGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 800 x 448, 1024 x 768 (XGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of users | 6 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 |
| Number of simultaneous live view channels | 3 channels |
| Live view | Yes |
| Storage | |
| Maximum memory card size | 32 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), SDHC |
| Flash memory | 256 MB |
| RAM capacity | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-TLS, HTTPS |
| Mirror | Yes |
| Anti-flicker | Yes |
| Digest authentication | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 7 W |
| Power consumption (Power over Ethernet (PoE)) | 5 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -30 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 107.1 mm |
| Diameter | 13.8 cm |
| Weight | 550 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
