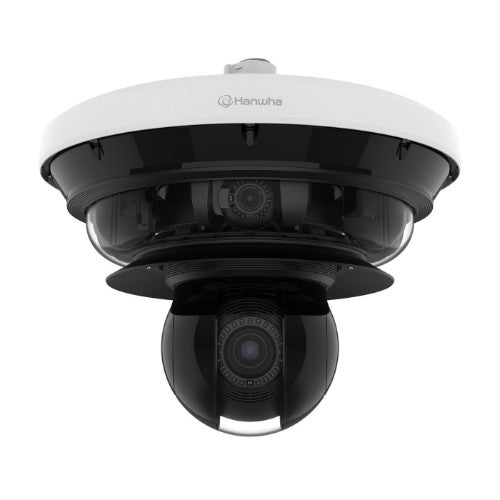

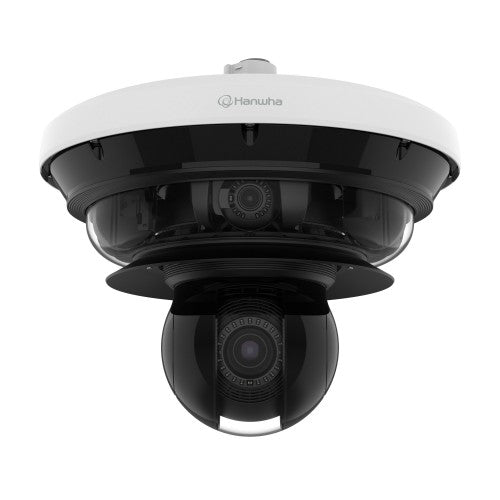

4K 4Ch PTRZ + 2MP 40x PTZ AI Camera
£4,793.75
Key Features
- 120dB WDR
- 44~142.6mm (Optical 40x) lens
- PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger
- 4-Channels @ 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°)
- 15FPS AI ON, 20FPS AI OFF
- 2MP @ 60FPS PTZ with 40x zoom
- IR viewable [4CH] length 20m (65ft) / [PTZ] WiseIR 200m (656ft)
- 265, H.264, MJPEG triple codec
- Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
- WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine)
- I/O Box compatibility
- TPM with FIPS 140-2 level 2
- micro SD card 512GB x2
- IP66, IK10, NEMA4X
- Operating Temperature: -40°C~+50°C(-40°F~+122°F)
- HPoE (injector included)
- Hard-coated dome bubble
Description
Specifications
| Performance | |
|---|---|
| Languages support | Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Camera | |
| Minimum illumination | 0.01 lx |
| Tilt angle range | 9 - 65° |
| Pan range | 0 - 360° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 90° |
| Camera shutter type | Electronic |
| Image sensor | |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
| Maximum aperture number | 1.9 |
| Focal length range | 3.3 - 5.7 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Video | |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 3840 x 2160 |
| Frame rate | 20 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Storage | |
| Maximum memory card size | 1 TB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Mirror | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 64 W |
| Power consumption (typical) | 45 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 301.9 mm |
| Diameter | 38 cm |
| Weight | 7.9 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
