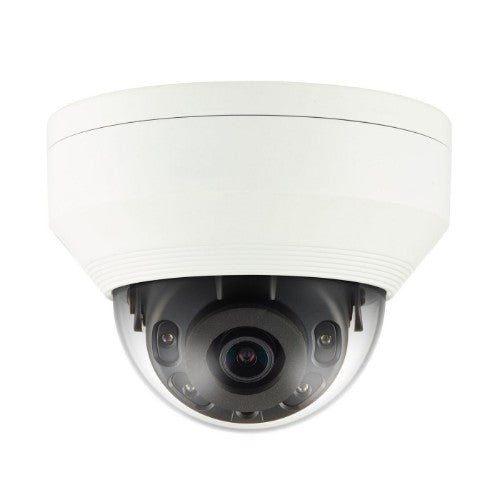

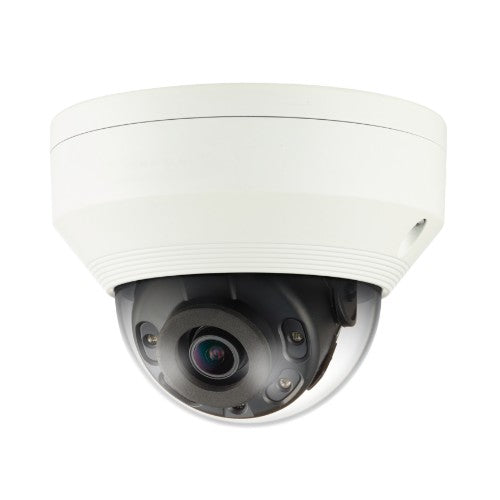

QNV-6012R, 1/2.8" 2MP CMOS, 1920x1080, 2.8mm, F2.0, WDR, SSNR, RJ-45, Micro SD/SDHC/SDXC, IP66, IK10, PoE, 12VDC, 120.3x91.7 mm
£193.75
Key Features
- Max. 2megapixel (1920 x 1080) resolution
- 0.1Lux (Color), 0Lux (B/W, IR LED on)
- 2.8mm fixed lens
- Max. 30fps@2M all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90˚/270˚), LDC support
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IR viewable length 20m/25m/30m
- IP66, IK10, PoE, 12VDC
Description
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 17 |
| Languages support | Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Camera | |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 350° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 355° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/12000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 113.74° |
| Lens viewing angle, vertical | 61.5° |
| Lens viewing angle, diagonal | 134.45° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focus | Yes |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio | |
| Voice codecs | G.711ulaw, G.726 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Storage | |
| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Microphone in | Yes |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Defocus |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, HTTPS, LEAP |
| IP address filtering | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 6.4 W |
| Power consumption (Power over Ethernet (PoE)) | 7.4 W |
| Power consumption (typical) | 5.1 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 91.7 mm |
| Diameter | 12 cm |
| Weight | 510 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
