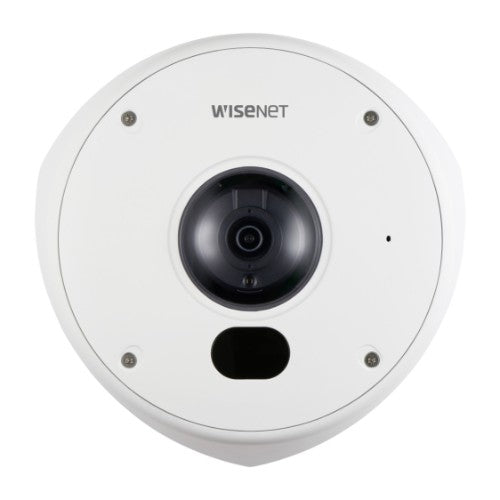

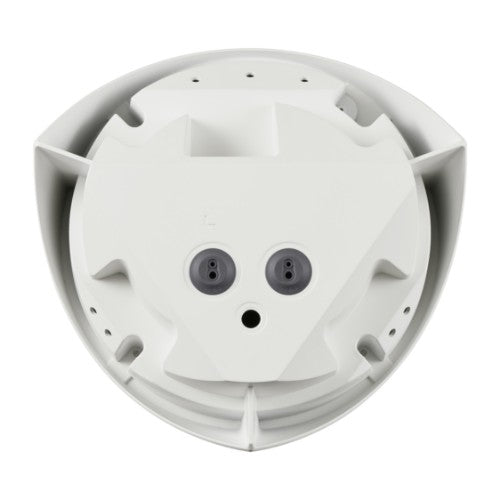

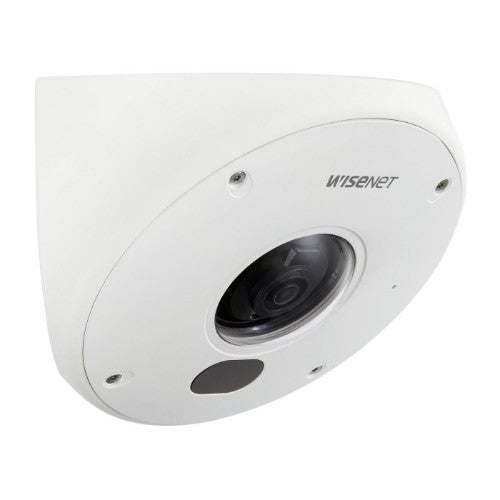

TNV-7010RC, 1/2.8" 3.2M CMOS, 2.8mm, F 2.0, IR, RJ-45, Micro SD/SDHC/SDXC, PoE, IP66, IK10, 236x236x126.5 mm
£117.88
Key Features
- Max. 3Megapixel (2048 x 1536) resolution
- Max. 30fps @ all resolutions (H.265/H.264/MJPEG)
- 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)
- Built-in 2.8mm fixed lens
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Video & audio analytics, Shock detection
- microSD/SDHC/SDXC memory slot (Max. 256GB)
- Hallway view, WiseStream II support
- PoE, DC 12V, IK10+
Description
Specifications
| Performance | |
|---|---|
| Number of languages | 17 |
| Languages support | Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| IK code | IK10 |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Camera | |
| Tilt angle range | -15 - 15° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 - 1/12000 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 75° |
| Lens viewing angle, diagonal | 129° |
| Progressive scan | Yes |
| Image sensor | |
| Number of effective pixels (H x V) | 2065 x 1553 pixels |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.4 m |
| Focus | Manual |
| Zoom capability | Yes |
| Digital zoom | 24x |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Infra-red wavelength | 940 nm |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | AVC, H.264, H.265, M-JPEG, MPEG4 |
| Maximum resolution | 2048 x 1536 pixels |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Video streaming | Yes |
| Total megapixels | 3.2 MP |
| Audio | |
| Voice codecs | G.711ulaw, G.726 |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Storage | |
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Defocus, Face detection |
| Video motion detection | Yes |
| Security algorithms | EAP-PEAP, EAP-TLS, HTTPS, SSL/TLS |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 11 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 126.5 mm |
| Height | 236 mm |
| Weight | 2.2 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Focus | Manual |
| Video compression formats | AVC, H.264, H.265, M-JPEG, MPEG4 |
