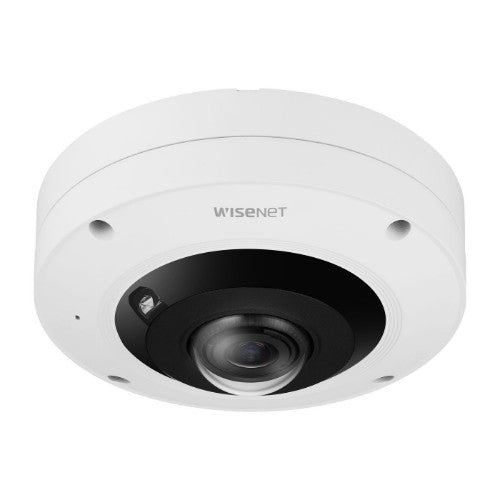

12 MP, 1/2.3" CMOS, 3008x3008, 1.08mm, PTZ, RJ-45, 2 x MicroSD, IP66, PoE, 160x72 mm
£770.00
Key Features
- 1/2.3" 12MP CMOS
- 1.08mm fixed focal lens
- H.265, H.264, MJPEG codec supported
- Original view, Single panorama, Double panorama, Quad view
- On board dewarping, Digital PTZ
- extreme WDR (120dB), WiseStreamⅢ(Based on AI engine)
- Wise IR, IR viewable length 8m
- Virtual channel support
- Plugin support, selectable I/O port
- Video Analytics, Heatmap, People counting
- Queue management
- Hard coated dome cover
- Motion detection, Handover, IP66/IK10/NEMA4X
- Mobile use available, supports M12
Description
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| People counting function | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Camera | |
| Field of view (FOV) angle | 187° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/12000 s |
| Number of Privacy masking areas | 32 |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 34.9 m |
| Observe distance | 13.9 m |
| Recognize distance | 7 m |
| Identify distance | 3.5 m |
| Closest focusing distance | 0.5 m |
| Minimum aperture number | 2.2 |
| Fixed focal length | 1.08 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 13 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Flip & mirror | Yes |
| Gain control type | Manual |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction V (SSNR V), WiseNR Ⅱ |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3008 x 3008 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 12 MP |
| Audio | |
| Audio formats supported | AAC-LC, ADPCM, G.711 μ-law, G.726 |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Storage | |
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Defocus, Face detection, Human detection, Vehicle detection |
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-TLS, HTTPS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Anti-flicker | Yes |
| Audit log | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 22 W |
| Power consumption (Power over Ethernet (PoE)) | 9.4 W |
| Power consumption (typical) | 9 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 72 mm |
| Diameter | 16 cm |
| Weight | 1.17 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
