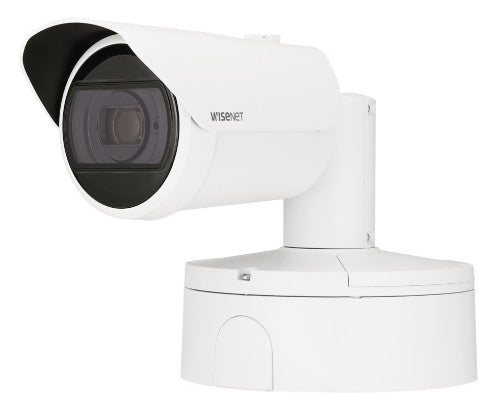

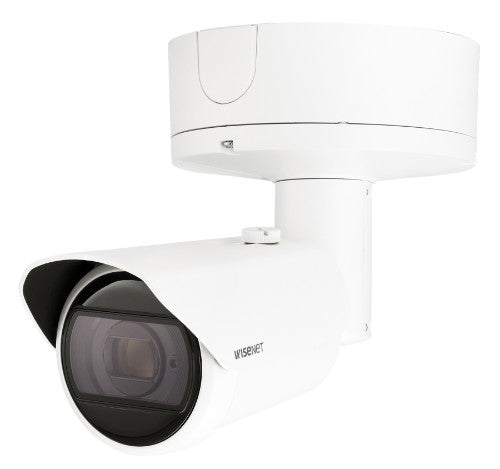

1/2.8" CMOS, 1920x1080, 5.2 - 62.4mm, RJ-45(10/100/1000BASE-T), 2GB RAM, 512MB Flash, ø93.4x298.4mm
£966.25
Key Features
- Maximum 2MP resolution
- Color: 0.03 Lux (F1.6, 1/30 sec, 30IRE), 0 Lux (IR LED on)
- Maximum 120 fps (H.265/H.264)
- Maximum IR viewable length : WiseIR 90m(295.28ft)
- Day & Night (ICR), extremeWDR (150 dB)
- WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine)
- DIS with built-in Gyro sensor
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection Audio detection, Sound classification, Shock detection, Appear/Disappear
- Certification : IP66/IP67, NEMA4X, IK10
Description
Specifications
| Performance | |
|---|---|
| Antenna type | Internal |
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) |
| Dynamic range | 150 dB |
| Design | |
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| Camera | |
| Minimum illumination | 0.03 lx |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 270° |
| Camera shutter speed | 2 - 1/12.000 s |
| Vertical field of view (optical module) | 33° |
| Horizontal field of view (optical module) | 55° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 3 |
| Auto focus | Yes |
| Recognize distance (wide) | 14.8 m |
| Recognize distance (tele) | 175.9 m |
| Observe distance (wide) | 29.5 m |
| Observe distance (tele) | 351.8 m |
| Identify distance (wide) | 7.4 m |
| Identify distance (tele) | 88 m |
| Detect distance (wide) | 73.8 m |
| Detect distance (tele) | 879.5 m |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 32x |
| Focal length range | 5.2 - 62.4 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 90 m |
| LED type | IR |
| Video | |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Gain control type | Manual |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction V (SSNR V), WiseNR Ⅱ |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200, 1920 x 1080 (HD 1080) |
| Frame rate | 120 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio | |
| Sample rate | 16000 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711 μ-law, G.726 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| RAM capacity | 2000 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-LEAP, EAP-PEAP, EAP-TLS, FIPS 140-2, HTTPS, MSCHAPv2 |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 16.5 W |
| Power consumption (Power over Ethernet (PoE)) | 15.5 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 13.1 W |
| DC output voltage | 12 |
| DC output current | 0.05 A |
| Certificates | |
| Certification | IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Length | 298.4 mm |
| Diameter | 9.34 cm |
| Weight | 2.3 kg |
| Sustainability | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), ICES, RCM, UKCA, UL, VCCI |
| Packaging content | |
| Number of cameras | 1 |
| Memory card included | SD |
| Technical details | |
| Iris | Yes |
| Technical features | LDC support |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), ICES, RCM, UKCA, UL, VCCI |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Audio output | Line out |
