Speedway Revolution GPIO Box
£298.10
Description

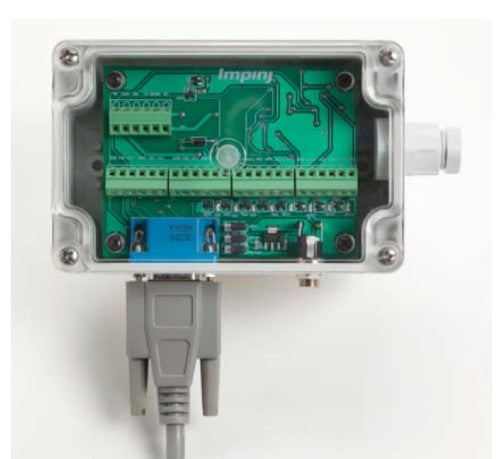

Impinj designed the Speedway® Revolution GPIO Box for use with the Speedway® Revolution reader to provide convenient access to the reader’s GPIO (General Purpose Input/Output) port. The GPIO Box interfaces with the reader via a supplied HD15 cable, and separates each input and output signal to easy-access screw terminals. Neighboring ground and power terminals accompany each signal terminal to easily connect three-wire devices. The GPIO Box also includes an on-board relay to interface with devices require high wattage or an open/short signal.Specifications
| Features | |
|---|---|
| Module type | Analog |
| Signal direction | Input/output |
| Serial interface type | RS-232 |
| Product colour | Grey |
| Operational conditions | |
| Relative humidity | 5 - 95% |
| Operating temperature (T-T) | -25 - 55 °C |
| Technical details | |
| Module type | Analog |
| Signal direction | Input/output |
| Ports & interfaces | |
| Serial interface type | RS-232 |
| Colour | |
| Product colour | Grey |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 80 mm |
| Height | 55 mm |
