19", Mini ITX/mATX/μATX/ATX/SSI CEB, USB 3.0, USB 2.0, 1.0 - 1.2mm steel

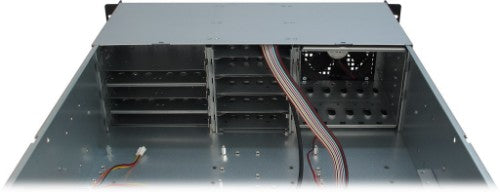

The IPC 3U-30248 provides the possibility to remove the two HDD cages on both sides and therefore to mount up to six 5.25" external hard drives. In the middle four external 3.5" HDDs are also available.
One 120mm and two 60mm fans guarantee an optimal cooling.
Additional extras like easily reachable USB 3.0 and USB 2.0 connectors and the lid with the snap locks complete this total package.
£158.75
Description
The IPC 3U-30248 is the perfect rack for a low-priced server system. The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.The IPC 3U-30248 provides the possibility to remove the two HDD cages on both sides and therefore to mount up to six 5.25" external hard drives. In the middle four external 3.5" HDDs are also available.
One 120mm and two 60mm fans guarantee an optimal cooling.
Additional extras like easily reachable USB 3.0 and USB 2.0 connectors and the lid with the snap locks complete this total package.
Specifications
| Design | |
|---|---|
| Material thickness | 1.2 mm |
| Number of external 5.25" bays | 6 |
| Material | Steel |
| Number of 5.25" bays | 6 |
| Number of 3.5" bays | 12 |
| Number of 2.5" bays | 14 |
| Number of internal 3.5" bays | 12 |
| Rack mounting | Yes |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX, SSI CEB |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| LED indicators | Alarm, HDD, Network, Power |
| Product colour | Black, Stainless steel |
| Type | Server |
| Form factor | Rack |
| On/off button | Yes |
| Rack capacity | 3U |
| Technical details | |
| Number of 5.25" bays | 6 |
| Number of 3.5" bays | 12 |
| Number of 2.5" bays | 14 |
| Number of internal 3.5" bays | 12 |
| Rack mounting | Yes |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX, SSI CEB |
| Supported HDD sizes | 3.5" |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Number of HDDs supported | 10 |
| Product colour | Black, Stainless steel |
| Type | Server |
| Form factor | Rack |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | Steel |
| Material thickness | 1.2 mm |
| Ports & interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | No |
| Audio output | No |
| USB 2.0 ports quantity | 1 |
| Indication | |
| LED indicators | Alarm, HDD, Network, Power |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | Alarm, HDD, Network, Power |
| On/off button | Yes |
| Power supply | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Supported power supply form factors | ATX |
| Power supply included | No |
| Cooling | |
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 6 |
| Side fans diameters supported | 40 mm |
| Rear fans installed | 2x 60 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 60 mm |
| Storage | |
| Supported HDD sizes | 3.5" |
| Number of HDDs supported | 10 |
| Weight & dimensions | |
| Width | 482 mm |
| Depth | 518 mm |
| Height | 133.5 mm |
| Weight | 9.48 kg |
| Material thickness | 1.2 mm |
| Packaging data | |
| Package width | 560 mm |
| Package height | 200 mm |
| Package depth | 660 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Harmonized System (HS) code | 84733080 |
