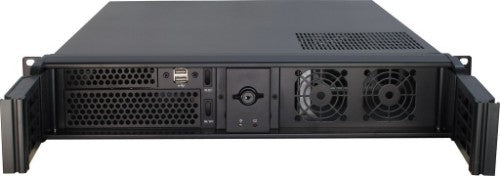

19" Rack, ATX, 1 x 5.25, 7 x 3.5, 2 x USB 2.0, 89 x 485 x 615 mm

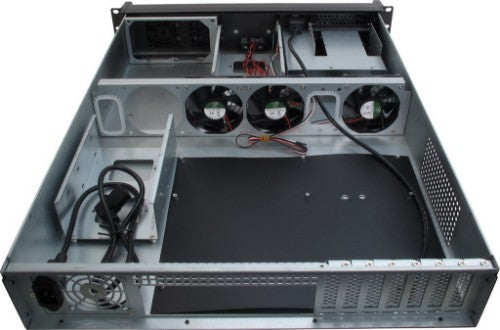

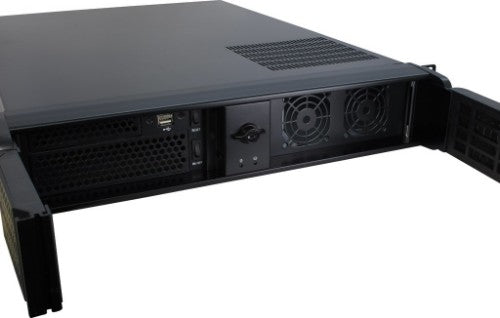

You can remove the HDD cages with a few steps for easy mounting of internal devices. On top you can mount an ATX PSU to get a cost-efficient and professional solution. Alternatively you can mount a 2U PSU. The lockable doors in front of the slots prevent, unauthorized access. Integrated air filters ensure clean air and a flawless cooling.
£133.75
Description
Classic 19" Chassis with a lot of space for different devicesYou can remove the HDD cages with a few steps for easy mounting of internal devices. On top you can mount an ATX PSU to get a cost-efficient and professional solution. Alternatively you can mount a 2U PSU. The lockable doors in front of the slots prevent, unauthorized access. Integrated air filters ensure clean air and a flawless cooling.
Specifications
| Design | |
|---|---|
| Material thickness | 1.2 mm |
| Number of external 5.25" bays | 1 |
| Material | Steel |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 7 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 6 |
| Rack mounting | Yes |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Side window | No |
| Reset button | Yes |
| LED indicators | Power, Reset |
| Certification | RoHS, CE |
| Product colour | Black |
| Type | Server |
| Form factor | Rack |
| Rack capacity | 2U |
| Technical details | |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 7 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 6 |
| Rack mounting | Yes |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Supported HDD sizes | 2.5,3.5" |
| Side window | No |
| Reset button | Yes |
| Product colour | Black |
| Type | Server |
| Form factor | Rack |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | Steel |
| Material thickness | 1.2 mm |
| Indication | |
| LED indicators | Power, Reset |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | Power, Reset |
| Certificates | |
| Certification | RoHS, CE |
| Power supply | |
| Power supply included | No |
| Ports & interfaces | |
| Audio input | No |
| Audio output | No |
| USB 2.0 ports quantity | 2 |
| Cooling | |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 60 mm |
| Side fans installed | 3x 80 mm |
| Number of rear fans supported (max) | 4 |
| Rear fans diameters supported | 80 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Width | 458 mm |
| Depth | 615 mm |
| Height | 89 mm |
| Weight | 8.72 kg |
| Material thickness | 1.2 mm |
| Packaging data | |
| Package width | 545 mm |
| Package height | 175 mm |
| Package depth | 720 mm |
| Package weight | 10.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
