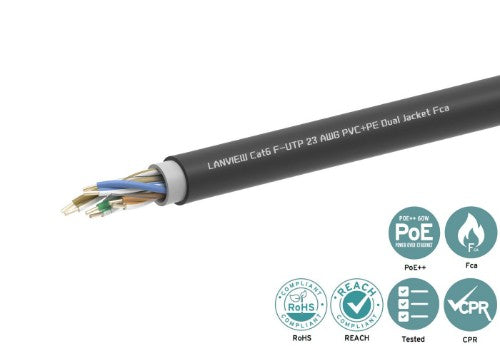

CAT6 F/UTP PVC+PE Dual Jacket solid cable 305m
← ←
Lanview Cat6 Foiled PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors
£191.25
Key Features
- Reaction-to-fire class: Fca
- AWG 23 solid copper
- EMC Class: B
- Meter marked cable
- Duct grade
- 305 m REELEX box
- Ideal for Burial in ground
- NVP Value: 69%
Description
Used in structured cabling systems. For transmission of telecommunications and high speed data.← ←
Lanview Cat6 Foiled PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors
Specifications
| Features | |
|---|---|
| Conductor material | Copper |
| Suitable for outdoor use | Yes |
| AWG wire size | 23 |
| Cable standard | Cat6 |
| Cable shielding | F/UTP (FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Cable length | 305 m |
| Cable shape | Round |
| Cable fire class | Fca |
| Certification | Rohs, Reach |
| Certificates | |
| Certification | Rohs, Reach |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 395 mm |
| Height | 395 mm |
| Weight | 10 kg |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 395 mm |
| Package height | 395 mm |
| Package weight | 12 kg |
| Technical details | |
| Cable standard | Cat6 |
| Cable shielding | F/UTP (FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Cable length | 305 m |
