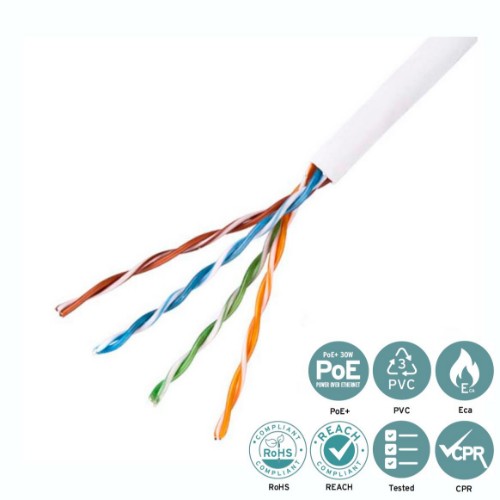

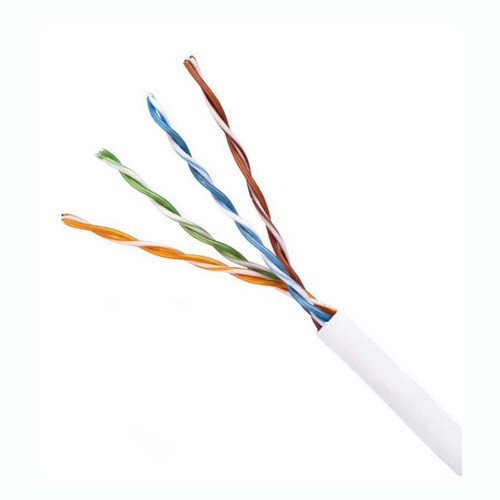

Cat5e U-UTP cable 4x2xAWG24 PVC white
There is no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.
Lanview Cat5e Unshielded PVC Cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
£84.21
Key Features
- Reaction-to-fire class: Eca
- AWG 24 solid copper
- EMC Class B
- 305 m REELEX box
- Meter marked cable
- Tested with 30 Watts but can also use POE++
- NVP Value: 69%
Description
Used in structured cabling systems. Conforms to the Category 5e networking standard and is ideally suited for indoor use, Fast Ethernet, voice, data, video and multimedia applications. This is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together.There is no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.
Lanview Cat5e Unshielded PVC Cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Frequency | 100 MHz |
| AWG wire size | 24 |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Solid |
| Cable length | 305 m |
| Cable fire class | Eca |
| Weight & dimensions | |
| Weight | 9 kg |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 300 mm |
| Package height | 305.5 mm |
| Package weight | 10.1 kg |
| Technical details | |
| Product colour | White |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Solid |
| Cable length | 305 m |
| Cable diameter | 5 mm |
| Other features | |
| Cable diameter | 5 mm |
| Impedance | 100 Ω |
