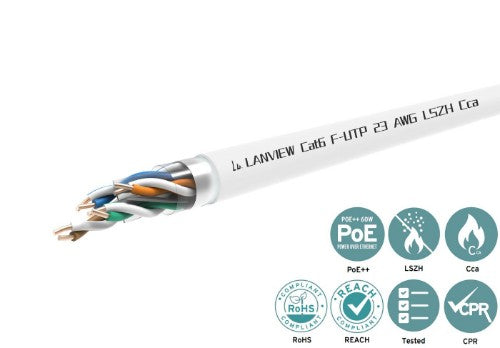

500m Cat6 F-UTP cable 4x2xAWG23 LSZH white, Fire Class: Cca
Lanview Cat6 Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
£265.46
Key Features
- Reaction-to-fire class: Cca-s1a,d1,a1
- AWG 23 solid copper
- EMC Class: B

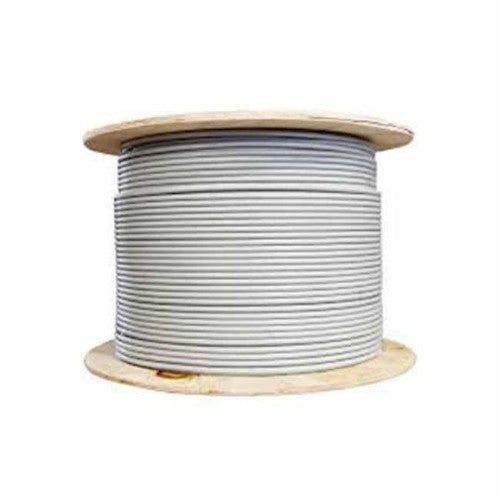

- 500 m Drum.
- Meter marked cable
- NVP Value: 69%
Description
Used in structured cabling systems. For transmission of telecommunications and high speed data.Lanview Cat6 Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 23 |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Cable fire class | Cca |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 350 mm |
| Height | 395 mm |
| Weight | 22 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package height | 395 mm |
| Package type | Box |
| Package weight | 26 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | White |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
| Products per pallet (sea) | 50 pc(s) |
| Other features | |
| Package type | Box |
| Logistics data | |
| Products per pallet | 27 pc(s) |
| Products per pallet (sea) | 50 pc(s) |
