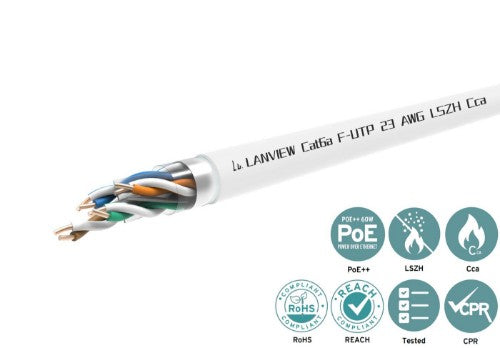

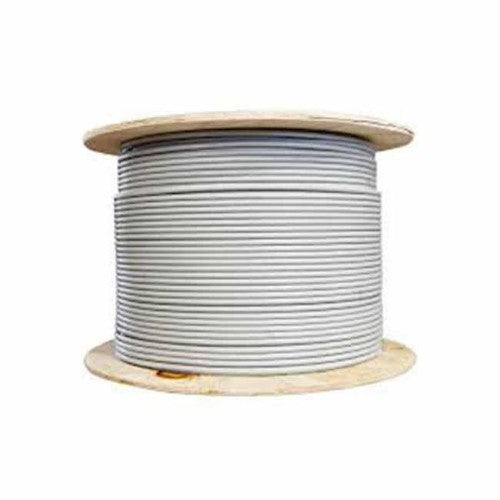

Cat6a F-UTP 4x2xAWG23 LSZH white 500m, Fire class: Cca
Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.
£323.18
Key Features
- Meter marked
- Resistant-to-fire Class: Cca-s1, d2, a1
- Outer sheath color: White
- AWG: 23 solid copper
- NVP Value: 67%
Description
Lanview Cat6a U-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 23 |
| Cable standard | Cat6a |
| Cable shielding | F/UTP (FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Cable fire class | Cca |
| Weight & dimensions | |
| Width | 390 mm |
| Depth | 390 mm |
| Height | 270 mm |
| Weight | 17 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 390 mm |
| Package depth | 390 mm |
| Package height | 270 mm |
| Package weight | 17 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | White |
| Cable standard | Cat6a |
| Cable shielding | F/UTP (FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
