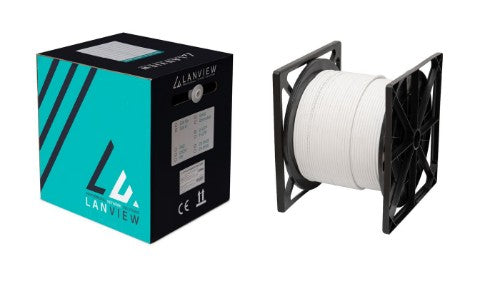

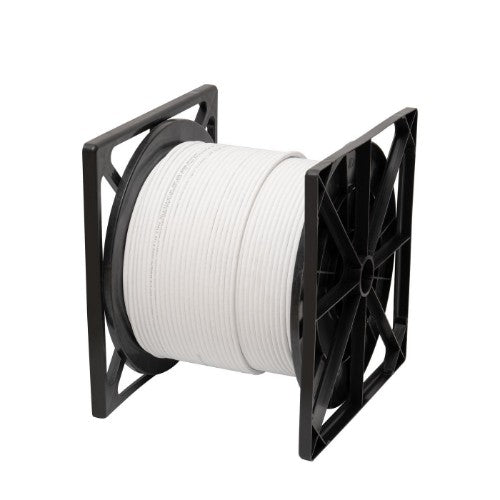

Cat6a U-FTP HD-BaseT 4x2xAWG23 LSZH white 305m, Dca
Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.
This Cat 6A cable has been tested and approved by the HDBaseT Alliance, guaranteeing its quality and network performance. The HDBaseT standard allows for the distribution of full HD video, 2K and 4K uncompressed video, audio, 100BaseT Ethernet, power and control across a single Cat 6A cable.
£177.64
Key Features
- HD-BaseT recommended
- Meter marked
- Resistant-to-fire Class: Dca-s1, d2, a1
- Outer sheath color: White
- AWG: 23 solid copper
- NVP Value: 74%
Description

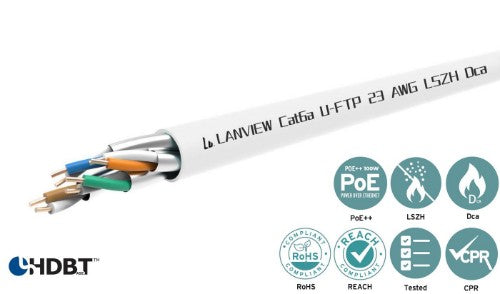

Lanview Cat6a HDbase-T recommended cable U-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.
This Cat 6A cable has been tested and approved by the HDBaseT Alliance, guaranteeing its quality and network performance. The HDBaseT standard allows for the distribution of full HD video, 2K and 4K uncompressed video, audio, 100BaseT Ethernet, power and control across a single Cat 6A cable.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 23 |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 305 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Cable fire class | Dca |
| Weight & dimensions | |
| Width | 390 mm |
| Depth | 390 mm |
| Height | 270 mm |
| Weight | 17 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 390 mm |
| Package depth | 390 mm |
| Package height | 270 mm |
| Package weight | 17 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | White |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 305 m |
