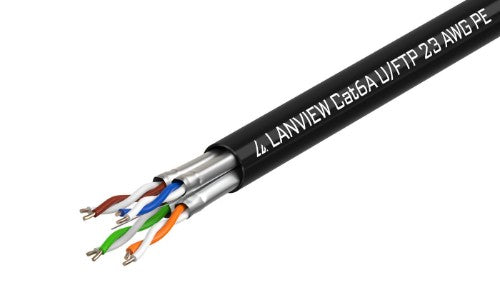

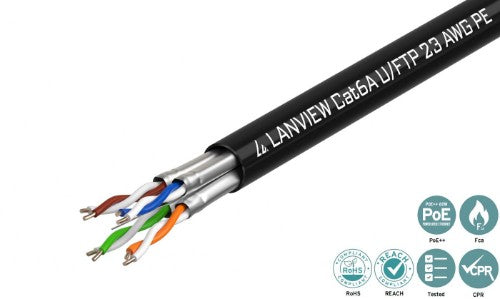

500m Cat6a U-FTP cable 4x2xAWG23 PE black outdoor, DUCT
This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.
Lanview Cat6a U-FTP PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors,
£280.56
Key Features
- UV resistant
- HD-Base T application
- AWG: 23 solid copper
- 500 m reel
- Meter marked
- Duct grade
- NVP Value: 74%
Description
Used in structured cabling systems outdoor. Typically used as intermediate cabling between buildings as well as outdoor surveillance.This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.
Lanview Cat6a U-FTP PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors,
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Conductor material | Copper |
| Suitable for outdoor use | Yes |
| Frequency | 500 MHz |
| AWG wire size | 23 |
| Cable standard | Cat6a |
| Cable class | D |
| Cable shielding | U/FTP (STP) |
| Cable type | Cable on reel |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Polyethylene (PE) |
| Conductor type | Solid |
| Cable length | 500 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Cable fire class | Fca |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 350 mm |
| Height | 400 mm |
| Weight | 22.5 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package height | 400 mm |
| Package weight | 26.5 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Black |
| Cable standard | Cat6a |
| Cable class | D |
| Cable shielding | U/FTP (STP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Polyethylene (PE) |
| Conductor type | Solid |
| Cable length | 500 m |
| Other features | |
| Cable type | Cable on reel |
