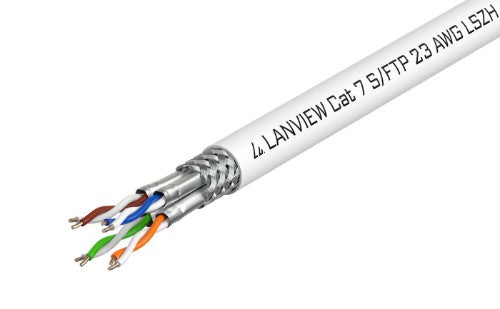

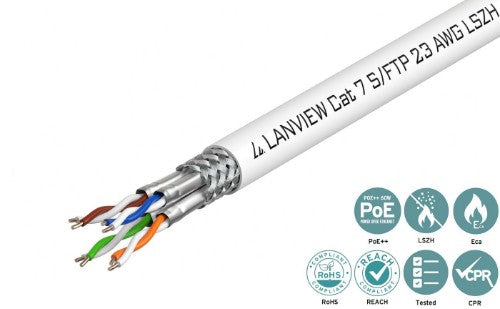

500m Cat7 S-FTP cable 4x2xAWG23 LSZH white
Offering the maximum protection from RFI/EMI, crosstalk and alien crosstalk, this cable has both an overall braid shield and foil shield, with individually foil tape screened twisted pairs. This type of cable provides the best level of protection from interference and better grounding due to the braid.
Lanview Cat7 S-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Especially suited for noisy environments or where there is limited space in the cable routes.
£294.54
Key Features
- HD-Base T application
- Shield: Foil/Braid
- AWG 23 solid copper

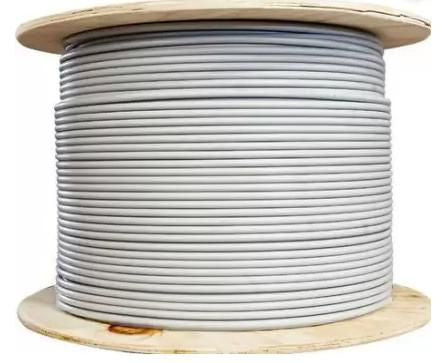

- 500 m reel
- Meter marked cable
- 600 MHz
- Tested to 60 Watts but can also run High POE.
- NVP Value: 74%
Description
Used for high speed cabling systems where there is a need for large data traffic.Offering the maximum protection from RFI/EMI, crosstalk and alien crosstalk, this cable has both an overall braid shield and foil shield, with individually foil tape screened twisted pairs. This type of cable provides the best level of protection from interference and better grounding due to the braid.
Lanview Cat7 S-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Especially suited for noisy environments or where there is limited space in the cable routes.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Conductor material | Copper |
| Frequency | 600 MHz |
| AWG wire size | 24 |
| Cable standard | Cat7 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Weight & dimensions | |
| Weight | 26.5 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package height | 400 mm |
| Package weight | 30.5 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | White |
| Cable standard | Cat7 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | No |
| Connector 2 | No |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 500 m |
