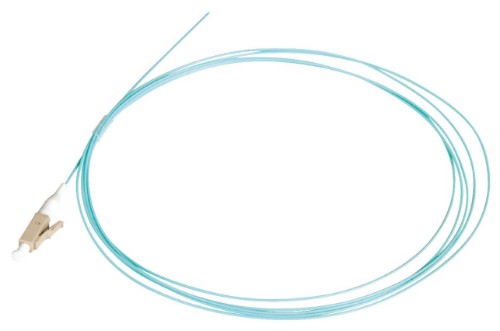

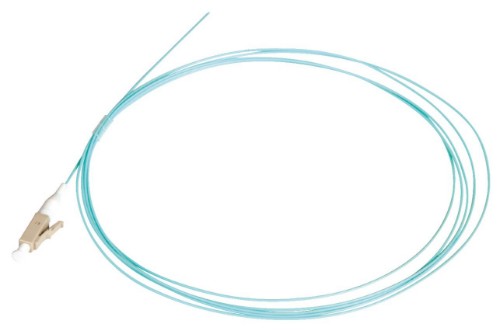

LC/UPC Pigtail Multimode 2m OM3 50/125 PVC EASY STRIP
£2.70
Key Features
- Designed for Data Centers, Industry and Computer Centers
- Length: 2 meter
- Fibre Standard G.652.D
Description
Used for splicing fibre optical cables. Comes with ceramic zirconia ferrule. Used in telecommunication and data communication installations in high speed network.Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Return loss | 35 dB |
| Jacket material | Polyvinyl chloride (PVC) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | No |
| Cable length | 2 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Product colour | Aqua colour |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Certification | ISO 9001, UL, GR-236-Core, IEC 61755, IEC61300 |
| Certificates | |
| Certification | ISO 9001, UL, GR-236-Core, IEC 61755, IEC61300 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable diameter | 0.9 mm |
| Weight | 12 g |
| Cable length | 2 m |
| Package weight | 12 g |
| Packaging data | |
| Package weight | 12 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Polyvinyl chloride (PVC) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | No |
| Cable length | 2 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Connector(s) | LC |
| Insertion loss | 0.3 dB |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Connector(s) | LC |
