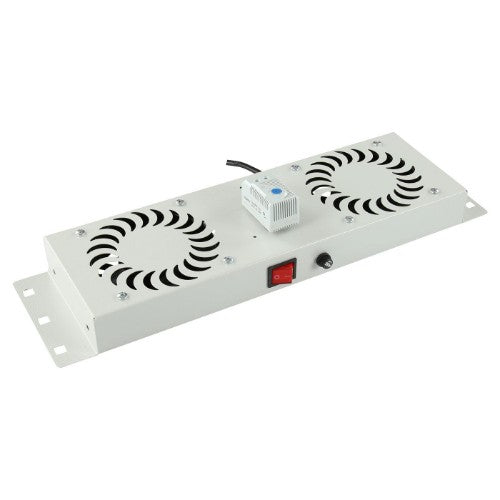

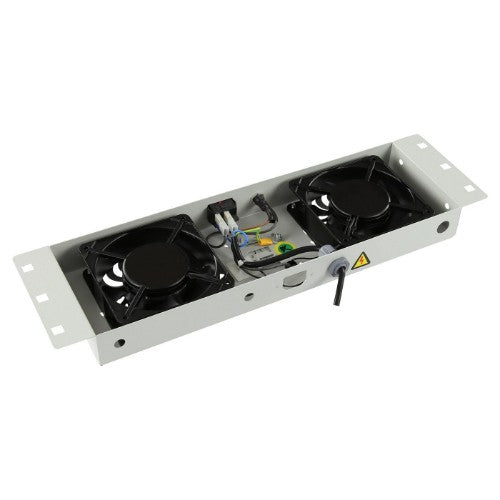

by Logon 2 FANS, ANALOG THERMOSTAT CONTROL FAN MODULE BUILT-IN With C14 Input
2 Fan Module roof mounted module with analog thermostat
Specifications
2 Fans
Analog thermostat
Air Flow: 280m³/hour
Universal
Roof mounted
RAL7035
£87.20
Key Features
- 42,5db - 44,5db noise level
- Cable needs to be bought separate C13-Country used.
Description
Model: Logon RAF115WH2 Fan Module roof mounted module with analog thermostat
Specifications
2 Fans
Analog thermostat
Air Flow: 280m³/hour
Universal
Roof mounted
RAL7035
Specifications
| Features | |
|---|---|
| Connector(s) | C14 Ready for C13 power cable to the Country Used |
| Easy mounting | Yes |
| Compatible rack width | 19" |
| Preassembled | Yes |
| Number of fans | 2 fan(s) |
| International Protection (IP) code | IP20 |
| Airflow | 280 m³/h |
| Type | Fan panel |
| Rack capacity | 1U |
| Product colour | White |
| Mounting hole shape | Square |
| Built-in fan | Yes |
| Housing material | Steel |
| Thermostat | Yes |
| Ports & interfaces | |
| Connector(s) | C14 Ready for C13 power cable to the Country Used |
| Cooling | |
| Number of fans | 2 fan(s) |
| Airflow | 280 m³/h |
| Built-in fan | Yes |
| Power | |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Package weight | 1.81 kg |
| Width | 486 mm |
| Weight | 1.8 kg |
| Height | 44 mm |
| Depth | 133 mm |
| Packaging data | |
| Package weight | 1.81 kg |
| Technical details | |
| Type | Fan panel |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 486 x 133 x 44 mm |
| Technical features | ANALOG THERMOSTAT |
| Compliance certificates | REACH |
| Colour | |
| Product colour | White |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 486 x 133 x 44 mm |
| Technical features | ANALOG THERMOSTAT |
