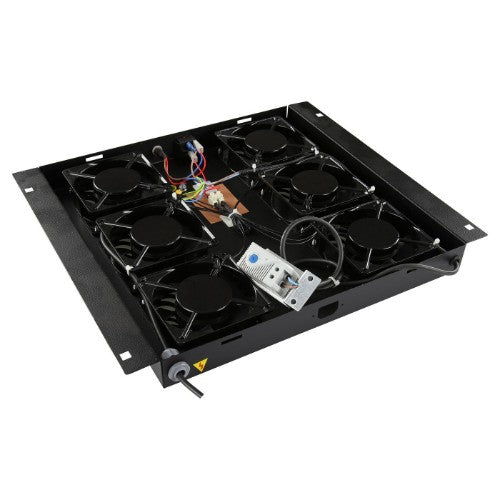

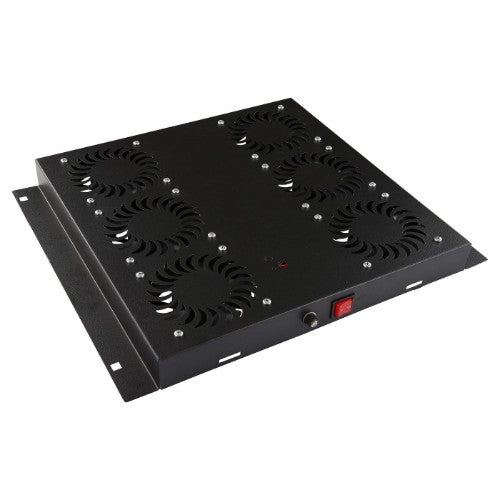

by Logon 6 FANS, ANALOG THERMOSTAT CONTROLLED FAN MODULE BLACK
6 Fan Module Rack Mounted module with analog thermostat
Specifications
6 Fans
With Analog Thermostat
Air Flow: 840m3/hour
Universal
Roof Mounted
RAL9005
£159.91
Key Features
- 52,3db - 56,3db noise level
Description
Model: Logon RAF125BL6 Fan Module Rack Mounted module with analog thermostat
Specifications
6 Fans
With Analog Thermostat
Air Flow: 840m3/hour
Universal
Roof Mounted
RAL9005
Specifications
| Features | |
|---|---|
| On/off switch | Yes |
| Easy mounting | Yes |
| Preassembled | Yes |
| Number of fans | 6 fan(s) |
| International Protection (IP) code | IP20 |
| Airflow | 840 m³/h |
| Type | Fan panel |
| Rack capacity | 1U |
| Product colour | Black |
| Mounting hole shape | Square |
| Number of attachment points | 4 |
| Cooling | |
| Number of fans | 6 fan(s) |
| Airflow | 840 m³/h |
| Power | |
| AC input frequency | 50 Hz |
| Power plug type | Type F |
| Weight & dimensions | |
| Package weight | 4.81 kg |
| Width | 487 mm |
| Weight | 4.8 kg |
| Height | 44 mm |
| Depth | 418 mm |
| Packaging data | |
| Package weight | 4.81 kg |
| Packaging content | |
| Screws included | Yes |
| Included power plug types | EU |
| Cage nuts included | Yes |
| Technical details | |
| Type | Fan panel |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 487 x 418 x 44 mm |
| Technical features | Analog Thermostat |
| Colour | |
| Product colour | Black |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 487 x 418 x 44 mm |
| Technical features | Analog Thermostat |
