15m Standard HDMI Cable, Anthra Line
£60.06
Key Features
- Superior performance and design Standard HDMI® cable
- Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit
- Robust PVC housing, gold plated connectors and contacts
- Triple shielded cable, corrosion resistant bare copper 24AWG conductors
Description
15m Standard HDMI Male-Male 4K@60Hz 4:2:0 Cable Anthra Line - Grey
Product Details
Superior performance and design Standard HDMI 2.0 cable
Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit
Robust PVC housing gold plated connectors and contacts
Triple shielded cable corrosion resistant bare copper 24AWG conductors
HDMI 2.0 compliant 3D 4K 10.2Gbps HEC ARC CEC Dolby? True HD DTS-HD Master Audio; 10 year warranty
From the Lines cable connectivity concept developed by Lindy Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

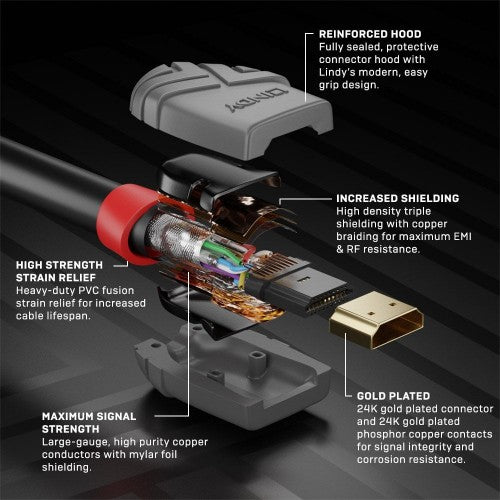

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby? True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
Product Technical Information
Connectors
• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: PVC
• Connector Plating: Gold
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 21.4x41.44x12.7mm (0.84x1.63x0.5in)
Cable Construction
• Length: 15m (49.21ft)
• Standard: HDMI Standard
• Colour: Black
• Type: Round
• Jacket Diameter: 9.8mm (0.39in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 24AWG
• Shielding: Aluminium Magnesium Alloy 55%
Specifications
• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
• Nominal Attenuation: 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
• Minimum Band Radius: 98mm (3.86in)
• Operating Temperature: -20?C - 80?C (-4?F - 176?F)
• Storage Temperature: -25?C - 85?C (-13?F - 185?F)
Miscellaneous
Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS REACH UL
Purchasing Information
• No.: 36968
• EAN: 4002888369688
| Features | |
|---|---|
| Type | HDMI Cables Male to Male |
| Length | 15.0m |
| Packaging | Polybag |
| AWG Size | 24 |
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black, Grey |
| Cable length | 15 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 24 |
| HDMI version | 2.0 |
| Data transfer rate | 10.2 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Colour sampling | 4:2:0 |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Shield material | Aluminium |
| Nominal attenuation | 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB |
| Bend radius (min) | 9.8 cm |
| Certification | RoHS, REACH, UL |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 9.8 mm |
| Connector 1 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Connector 2 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
