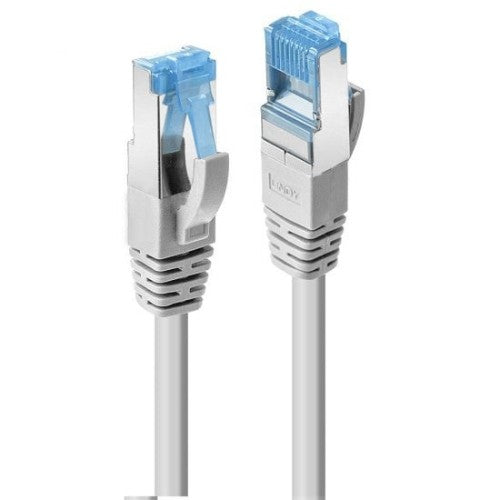

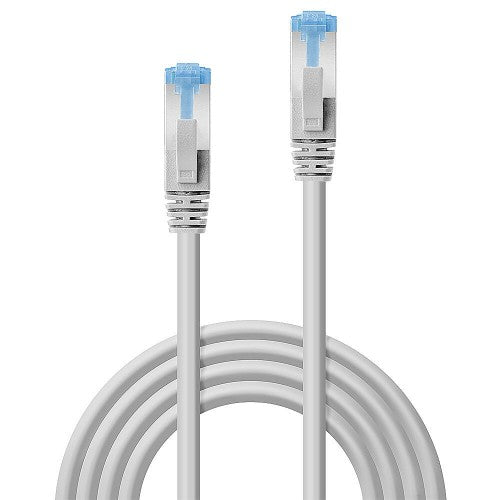

2m Cat.6A U/UTP LSZH Cable, Grey
Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m
£3.33
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A U/UTP, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Description
Cat.6A U/UTP LSZH network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 26 |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10GBase-T |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 2 m |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector housing material | Polycarbonate (PC) |
| Bend radius (min) | 6.9 cm |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Compliance certificates | REACH, RoHS, UL |
| Weight & dimensions | |
| Width | 11.6 mm |
| Depth | 22.8 mm |
| Height | 8.3 mm |
| Outer diameter | 5.8 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging data | |

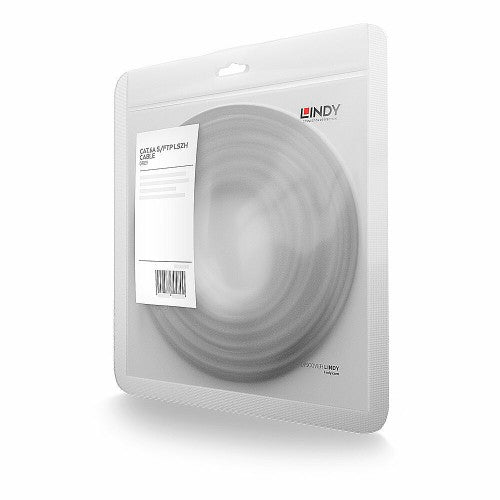

| Package type | Polybag |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Grey |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10GBase-T |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 2 m |
| Doesn't contain | Halogen |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS, UL |
| Sustainability compliance | Yes |
| Other features | |
| Package type | Polybag |
| Logistics data | |
| Warranty period | 10 year(s) |
