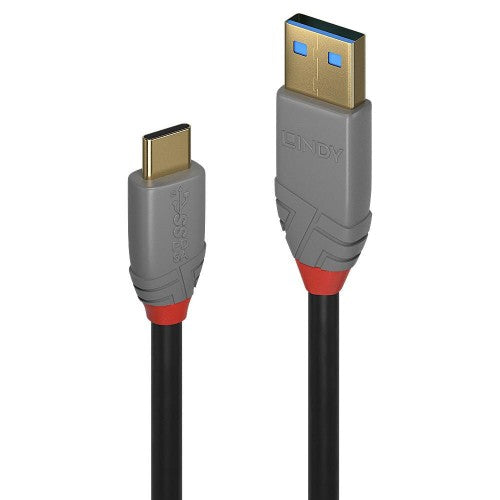

2m USB 3.2 Type A to C Cable, 10Gbps, Anthra Line
£21.43
Key Features
- Delivers up to 15W of power (5V 3A) for charging smartphones, tablets and other devices efficiently throughout the workday.
- Perfect for connecting modern USB-C devices to traditional USB-A ports.
- Featuring triple-shielded cable and gold-plated contacts for superior performance, signal integrity, and durability in mission-critical environments.
Description
2m USB 3.2 Type A to C Cable 10Gbps 5A PD Anthra Line
• Professional choice USB 3.2 Gen 2 Type A to C 5A (100W) cable for commercial and high performance AV and IT installations
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.2 Gen 2 USB 3.1 Gen 2 USB 3.1) and Power Delivery
• Robust TPE housing gold plated connectors and contacts
• Triple shielded cable corrosion resistant tinned copper conductors
• 2 year warranty
The Anthra Line USB 3.2 Type A to C 5A cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector so no matter which orientation the cable is inserted a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C 5A cables are available in the following lengths: 0.5m 1m 1.5m 2m and 3m.
| Features | |
|---|---|
| Length | 2.0m |
| USB C Male to USB A Male | Yes |
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable colour | Black |
| Plug and Play | Yes |
| AWG wire size | 24/30/32 |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB A |
| Cable length | 2 m |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Phosphor bronze |
| Connector shielding | Yes |
| Connector shield material | Copper |
| Connector housing material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 0.5Mhz-15Ghz?40dB |
| Maximum data transfer rate | 10 Gbit/s |
| Cable diameter | 5.2 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 5.2 mm |
| Cable length | 2 m |
| Width | 13 mm |
| Depth | 41 mm |
| Bend radius (min) | 4.5 cm |
| Connector 1 dimensions (WxDxH) | 16 x 47 x 8.8 mm |
| Connector 2 dimensions (WxDxH) | 13 x 41 x 7.75 mm |
| Package width | 20 mm |
| Package depth | 174 mm |
| Package height | 194 mm |
| Package type | Polybag |
| Packaging data | |
| Package width | 20 mm |
| Package depth | 174 mm |
| Package height | 194 mm |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB A |
| Connector contacts plating | Gold |
| Connector(s) | USB 3.2 A Male to C Male |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Magnetically shielded | Yes |
| Product colour | Black |
| Cable colour | Black |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS, UL |
| Housing material | Thermoplastic elastomer (TPE) |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Compliance certificates | REACH, RoHS, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Width | 13 mm |
| Depth | 41 mm |
| Connector(s) | USB 3.2 A Male to C Male |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS, UL |
| Logistics data | |
| Products per master (outer) case | 100 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
