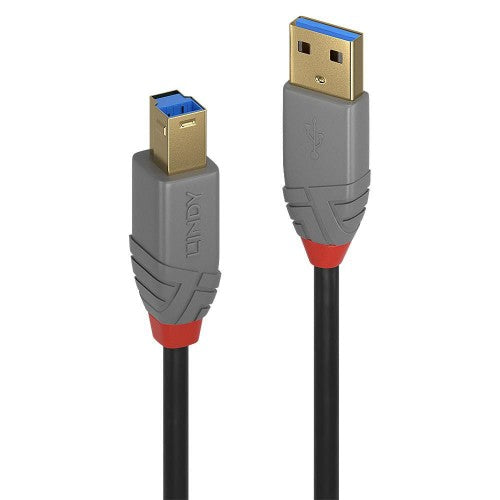

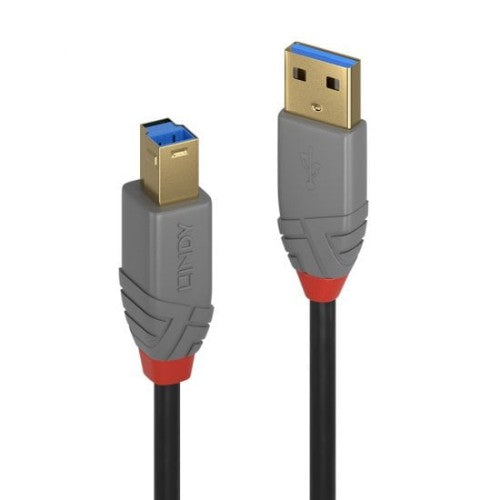

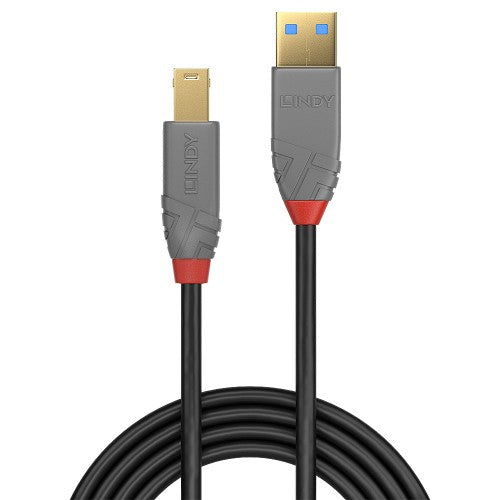

2m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line
Key Features
Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations
SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty
The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.
Information about USB Generations
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Connectors
Connector A
USB 3.2 Type A Male
Connector B,/b>
USB 3.2 Type B Male
Housing Material
PVC
Connector Plating
Gold Plated
Pin Construction
Copper
Pin Plating
Gold Plated
Dimensions
USB A (approx.) W x D x H
15.5 x 35 x7.8 mm (0.61 x 1.38 x 0.31 in)
USB B (approx.) W x D x H
12.2 x 35 x 13.5 mm (0.48 x 1.38 x 0.53 in)
Cable Construction
Length
2 m (6.6 ft)
Standard
USB 3.2 Gen 1
Colour
Black
Type
Round
Jacket Diameter
5.5 mm (0.22 in)
Jacket Material
PVC
Conductor Material,/b>
Tinned Copper
Conductor Gauge Power
24AWG
Conductor Gauge Data
28AWG
Shielding
Aluminium Braid 85%
Specifications
Supported Bandwidth
5Gbps
Maximum Resolution
N/A
Nominal Attenuation
0.5-5m: 0.5MHz-7.5GHz
Minimum Bend Radius
48 mm (1.89 in)
Operating Temperature
0°C - 60°C (32°F - 140°F)
Storage Temperature,/b>
0°C - 60°C (32°F - 140°F)
Miscellaneous
Packaging Type
Polybag
Warranty (Years)
10
Certificated
RoHS, REACH, UL
£5.33
Key Features
- Perfect for reliable connections between PCs, laptops and USB Type B devices such as printers, scanners, audio equipment and industrial peripherals.
- Featuring triple-shielded cable and gold-plated connector housing with gold-plated contacts and connectors for enhanced durability and signal quality in mission-critical environments.
Description
Lindy 2m USB 3.2 Type A to B Cable, 5Gbps, Anthra LineKey Features
Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations
SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty
The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.
Information about USB Generations
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Connectors
Connector A
USB 3.2 Type A Male
Connector B,/b>
USB 3.2 Type B Male
Housing Material
PVC
Connector Plating
Gold Plated
Pin Construction
Copper
Pin Plating
Gold Plated
Dimensions
USB A (approx.) W x D x H
15.5 x 35 x7.8 mm (0.61 x 1.38 x 0.31 in)
USB B (approx.) W x D x H
12.2 x 35 x 13.5 mm (0.48 x 1.38 x 0.53 in)
Cable Construction
Length
2 m (6.6 ft)
Standard
USB 3.2 Gen 1
Colour
Black
Type
Round
Jacket Diameter
5.5 mm (0.22 in)
Jacket Material
PVC
Conductor Material,/b>
Tinned Copper
Conductor Gauge Power
24AWG
Conductor Gauge Data
28AWG
Shielding
Aluminium Braid 85%
Specifications
Supported Bandwidth
5Gbps
Maximum Resolution
N/A
Nominal Attenuation
0.5-5m: 0.5MHz-7.5GHz
Minimum Bend Radius
48 mm (1.89 in)
Operating Temperature
0°C - 60°C (32°F - 140°F)
Storage Temperature,/b>
0°C - 60°C (32°F - 140°F)
Miscellaneous
Packaging Type
Polybag
Warranty (Years)
10
Certificated
RoHS, REACH, UL
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/28/30 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Cable length | 2 m |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black, Grey |
| Certification | RoHS, REACH, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Gold |
| Contact material | Copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 0.5-5m: 0.5MHz-7.5GHz |
| Maximum data transfer rate | 5 Gbit/s |
| Cable diameter | 5.5 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 5.5 mm |
| Cable length | 2 m |
| Bend radius (min) | 4.8 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 12.2 x 35 x 13.5 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Technical details | |
| Magnetically shielded | Yes |
| Product colour | Black, Grey |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black, Grey |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
