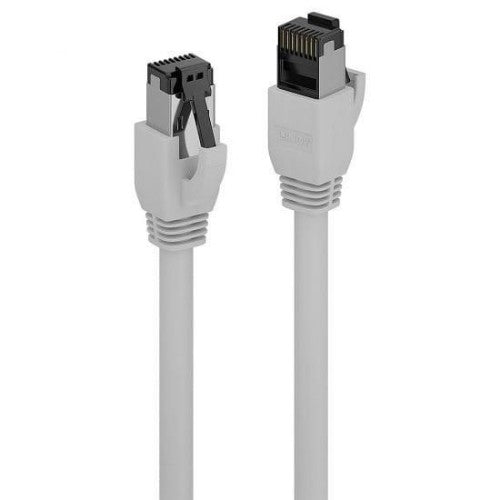

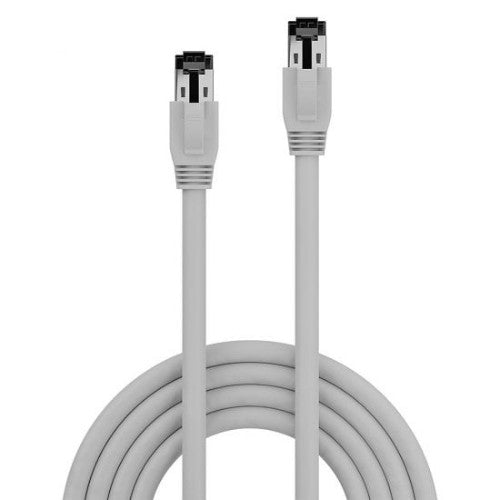

3m Cat.8.1 S/FTP LSZH Cable, Grey
Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m
£21.58
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.8.1 S/FTP PIMF, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
- 10 year warranty
Description
Cat.8.1 S/FTP LSZH network cable with support for bandwidth up to 2000MHz and features a snagless design with gold plated contacts for ethernet standards up to 40GBase-T.Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 2000 MHz |
| AWG wire size | 26 |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 3 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 6 cm |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 38.5 mm |
| Height | 17 mm |
| Outer diameter | 7.5 mm |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Product colour | Grey |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 3 m |
| Compliance certificates | REACH, RoHS |
| Sustainability compliance | Yes |
| Other features | |
| Package type | Polybag |
