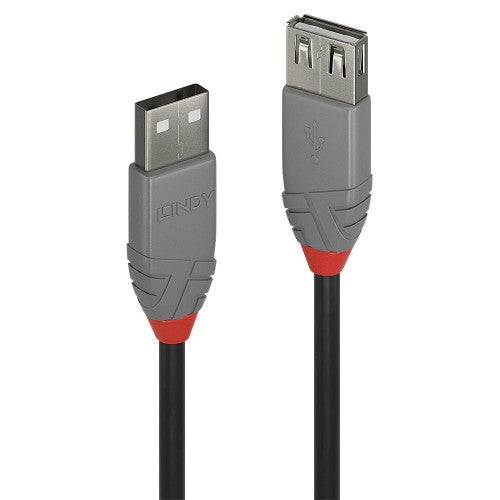

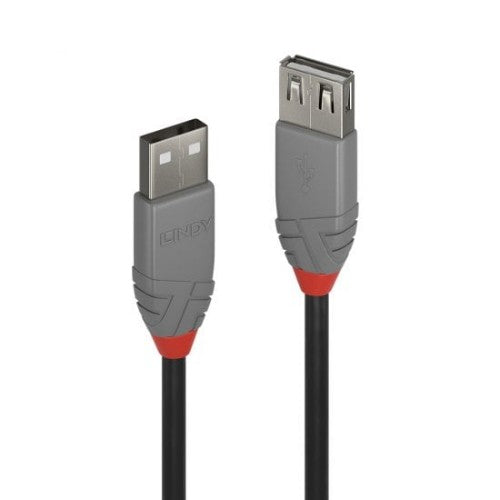

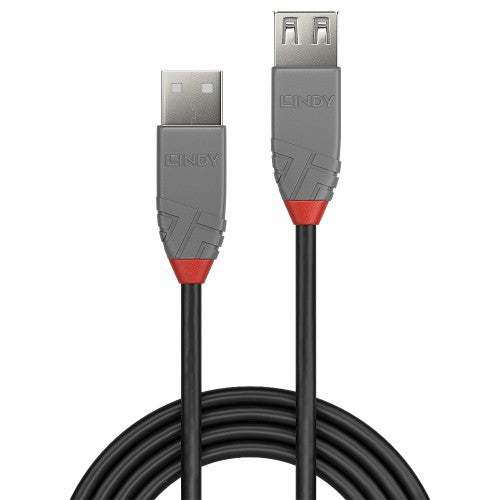

3m USB 2.0 Type A Extension Cable, Anthra Line
£2.83
Key Features
- Ideal for extending the connection of PCs, laptops and compatible USB Type A devices such as hubs, docking stations and industrial peripherals.
- Double-shielded cable and nickel-plated connectors for superior performance, signal integrity, and durability in mission-critical environments.
Description
3m USB 2.0 Type A Extension Cable Anthra Line - Grey
From the Lines cable connectivity concept developed by Lindy Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.
• Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing nickel connectors and gold plated contacts
• Double shielded cable corrosion resistant tinned copper conductors
• USB 2.0 480Mbps; 10 year warranty
Connectors:
• Connector A: USB 2.0 Type A Male
• Connector B: USB 2.0 Type A Female
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: 24K Gold
• Dimensions USB A Male (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
• Dimensions USB A Female (approx.) WxDxH: 17x35x9.8mm (0.67x1.38x0.39in)
Cable Construction:
• Length: 3m (9.84ft)
• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.4mm (0.17in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/28AWG
• Shielding: Aluminium Magnesium Braid
Specifications:
• Supported Bandwidth: 480Mbps
• Maximum Resolution: -
• Nominal Attenuation: 5.8db/km
• Minimum Bend Radius: 16mm (0.63in)
• Operating Temperature: 0?C - 60?C (32?F - 140?F)
• Storage Temperature: 0?C - 60?C (32?F - 140?F)
Miscellaneous:
• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS REACH UL
Purchasing Information:
• No. 36704
• EAN: 4002888367042
This product is also available in other lengths:
• 36690 – 0.2m (0.66ft)
• 36691 - 0.5m (1.64ft)
• 36692 - 1m (3.28ft)
• 36693 - 2m (6.56ft)
• 36694 - 3m (9.84ft)
• 36695 - 5m (16.44ft)
| Features | |
|---|---|
| Type | USB Extension Cables |
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 3 m |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black, Grey |
| Certification | RoHS, REACH, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 5.8db/km |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable diameter | 4.4 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.4 mm |
| Cable length | 3 m |
| Bend radius (min) | 1.6 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 17 x 35 x 9.8 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Magnetically shielded | Yes |
| Product colour | Black, Grey |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black, Grey |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
