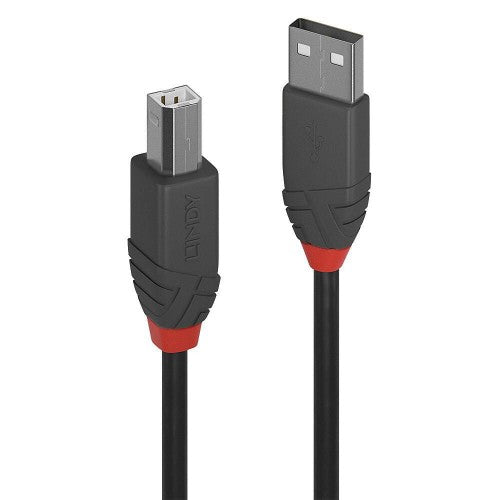

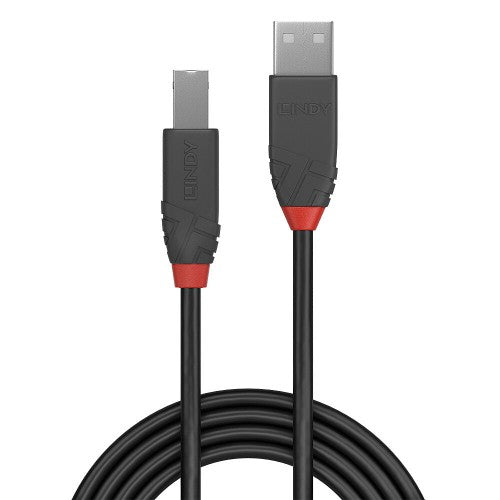

3m USB 2.0 Type A to B Cable, Anthra Line
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistaOKnt tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.
Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type B Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold
Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
Dimensions, USB B (approx.) WxDxH: 11.8x35x10.2mm (0.47x1.38x0.40in)
Cable Construction
Length: 3m (9.84ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid
Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
£2.91
Key Features
- Perfect for reliable connections between PCs, laptops and USB Type B devices such as printers, scanners, audio equipment and industrial peripherals.
- Delivers up to 2.5W of power (5V 0.5A) to efficiently power smaller devices.
- Featuring double-shielded cable and chrome-plated ABS connector housing with gold-plated contacts and connectors for enhanced durability and signal quality in mission-critical environments.
Description
- Professional choice USB 2.0 Type A to B cable for commercial and high performance AV and IT installations- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistaOKnt tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.
Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type B Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold
Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
Dimensions, USB B (approx.) WxDxH: 11.8x35x10.2mm (0.47x1.38x0.40in)
Cable Construction
Length: 3m (9.84ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid
Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Cable length | 3 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 5.8db/km |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable diameter | 4.4 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.4 mm |
| Cable length | 3 m |
| Bend radius (min) | 1.6 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 35 x 10.2 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
