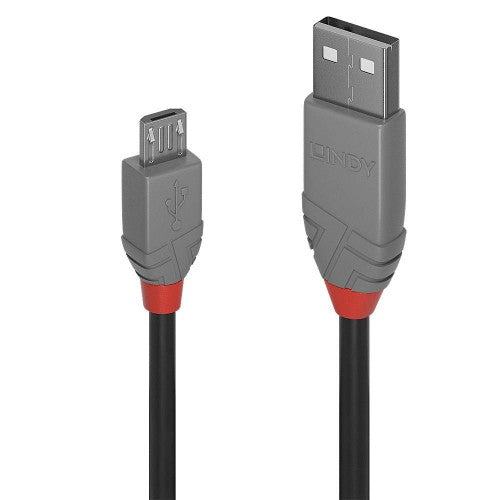

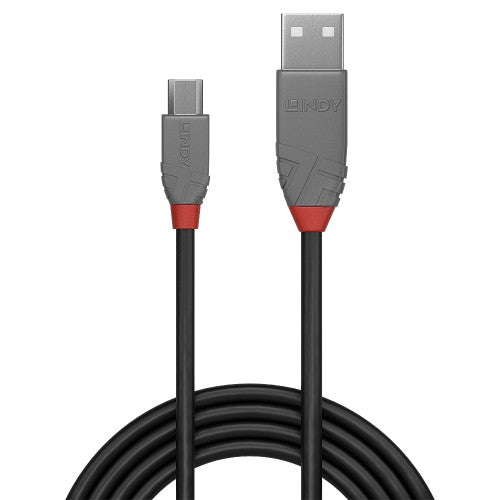

Lindy 3m USB 2.0 Type A to Micro-B Cable, Anthra Line

Key Features

• Ideal for connecting Micro-B peripherals such as smartphones and portable hard drives to a PC or laptop.
• Delivers up to 2.5W of power (5V 0.5A) to efficiently power smaller devices.
• Double-shielded cable and nickel-plated connectors for superior performance, signal integrity, and durability in mission-critical environments.

Description

3m USB 2.0 Type A to Micro-B Cable Anthra Line

Product Details
• Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations.
• Supports data transfer speeds up to 480Mbps.
• Robust PVC housing nickel connectors and gold plated contacts.
• Double shielded cable corrosion resistant tinned copper conductors.
• USB 2.0 480Mbps; 10 year warranty.

From the Lines cable connectivity concept developed by Lindy Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.

Product Technical Information

Connectors
• Connector A: USB 2.0 Type A Male.
• Connector B: USB 2.0 Type Micro-B Male.
• Housing Material: PVC.
• Connector Plating: Nickel.
• Pin Construction: Copper.
• Pin Plating: 24K Gold.
• Dimensions USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in).
• Dimensions USB Micro-B (approx.) WxDxH: 10x24x7.6mm (0.29x0.95x0.30in).

Cable Construction
• Length: 3m (9.84ft).
• Standard: USB 2.0.
• Colour: Black.
• Type: Round.
• Jacket Diameter: 3.5mm (0.14in).
• Jacket Material: PVC.
• Conductor Material: Tinned Copper.
• Conductor Gauge: 28AWG.
• Shielding: Aluminium Magnesium Braid.

Specifications
• Supported Bandwidth: 480Mbps.
• Nominal Attenuation: 5.8db/km.
• Minimum Bend Radius: 16mm (0.63in).
• Operating Temperature: 0?C - 60?C (32?F - 140?F).
• Storage Temperature: 0?C - 60?C (32?F - 140?F).

Miscellaneous
• Packaging Type: Polybag.
• Warranty (Years): 10.
• Certificated: RoHS REACH UL.

Purchasing Information
• No: 36734.
• EAN: 4002888367349.

This Product Is Also Available In Other Lengths
• 36730 – 0.2m (0.66ft).
• 36731 - 0.5m (1.64ft).
• 36732 - 1m (3.28ft).
• 36733 - 2m (6.56ft).
• 36734 - 3m (9.84ft).
• 36735 - 5m (16.40ft).
