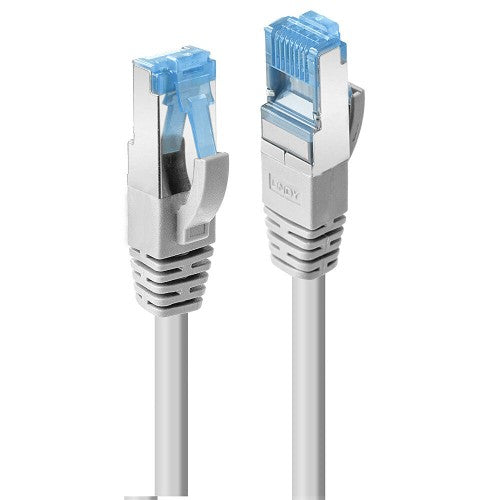

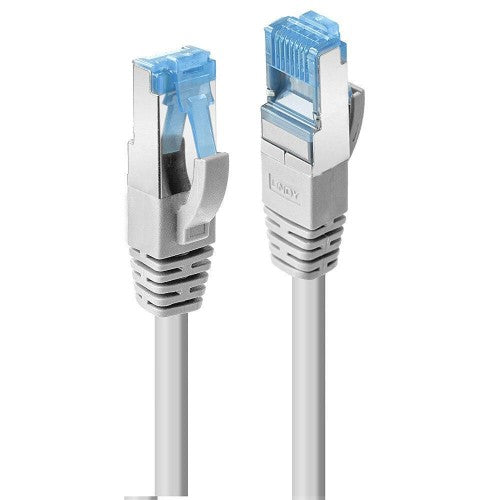

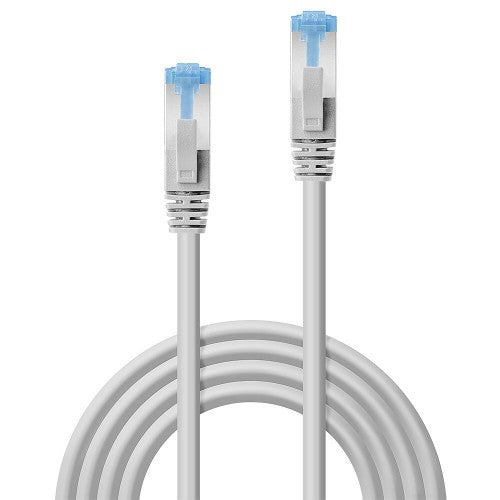

1.5m Cat.6A S/FTP TPE Network Cable, Grey

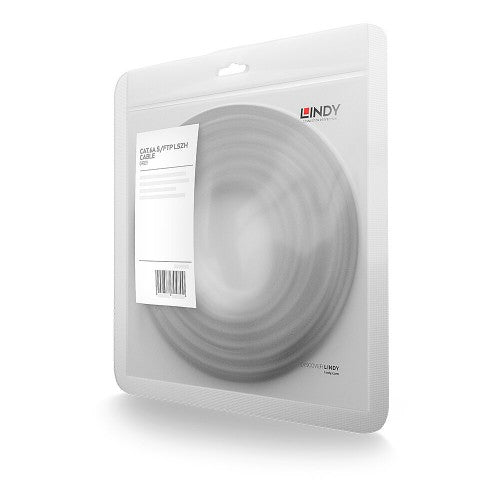

The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
£3.20
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A S/FTP PIMF, TPE
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Snagless cable boot | Yes |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 28 |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10GBase-T |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable length | 1.5 m |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector housing material | Polycarbonate (PC) |
| Bend radius (min) | 7.4 cm |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Certification | RoHS, REACH, California Proposition 65 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Width | 11.6 mm |
| Depth | 22.8 mm |
| Height | 8.3 mm |
| Outer diameter | 6.2 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Grey |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10GBase-T |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable length | 1.5 m |
| Quantity per box | 1 pc(s) |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS |
| Sustainability compliance | Yes |
| Other features | |
| Quantity per box | 1 pc(s) |
| Package type | Polybag |
| Logistics data | |
| Quantity per box | 1 pc(s) |
| Warranty period | 10 year(s) |
