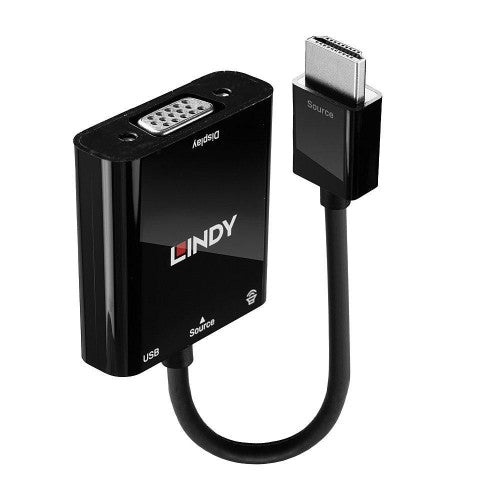

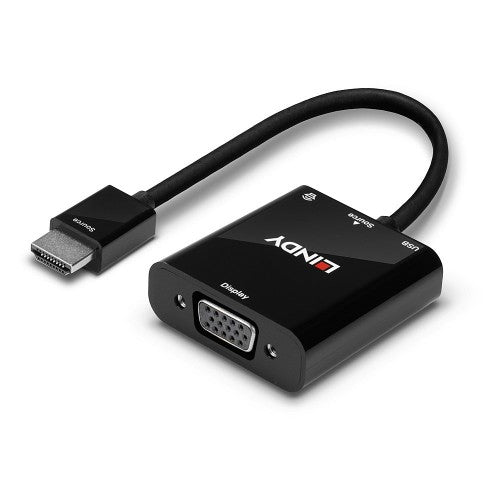

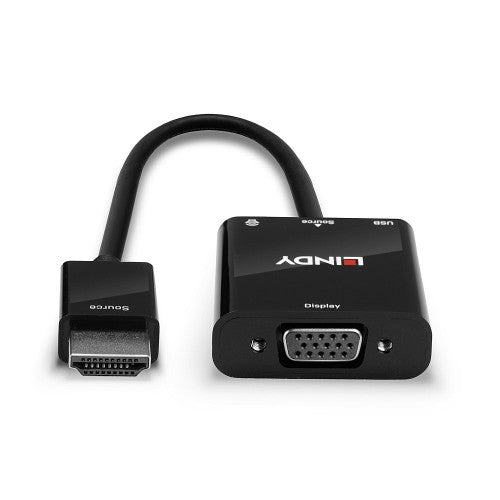

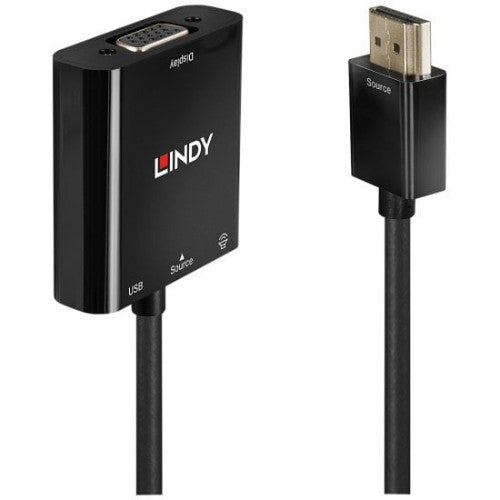

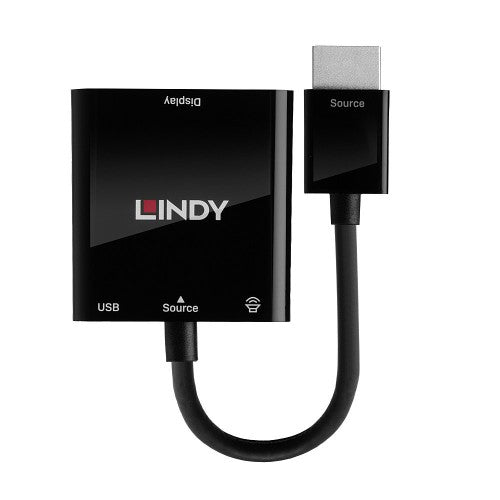

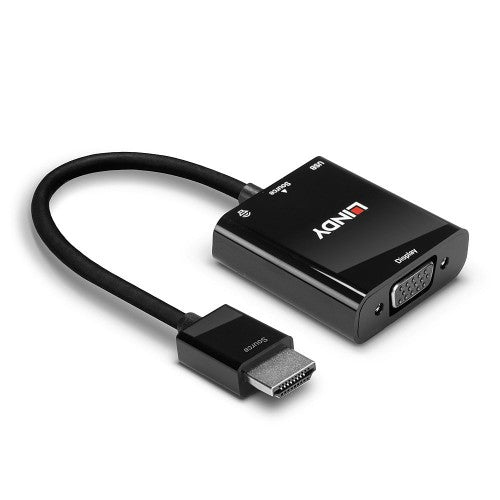

HDMI to VGA and Audio Converter
£17.75
Key Features
- Connects an HDMI® equipped device to a VGA display and analogue speakers
- Supports resolutions up to 1920x1080
- Direct signal conversion, without scaling
- Quick and simple plug and play installation
Description
10cm HDMI Male to VGA Female and Audio Converter - Black
HDMI to VGA & Audio Converter - Black
This adapter is ideal for connecting HDMI equipped sources such as laptops ultrabooks and PCs to VGA displays. It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal.
Full HD signals are supported including 1080p for HDTV connections and up to 1920x1080 for PC VGA monitors. No external power source is required which makes this converter the perfect tool for flexible working in different environments whether it’s in the office travelling to hold presentations or at home as it also permits the use of older VGA monitors or projectors to display content.
• Connects an HDMI equipped device to a VGA display and analogue speakers
• Supports resolutions up to 1920x1200 including 1080p
• Direct signal conversion without scaling
• Quick and simple plug and play installation
• 2 Year Warranty
Specifications
• AV Interface: HDMI to VGA & 3.5mm Stereo Audio
• Interface Standard: HDMI 1.3 VGA
• Supported Bandwidth: 4.95Gbps
• Maximum Input Resolution: 1920x1080
• Maximum Output Resolution: 1920x1200@60Hz 12bit
• Chipset: Algoltek AG6200A
• HDCP Support: -
• Supported Audio: Pass-through
• Separate Audio Ports: 3.5mm Stereo Audio socket
• Special Features: USB Micro B socket for power
Connectors
• Input: HDMI Type A Male
• Output: VGA Female 3.5mm Stereo Audio Female USB Micro-B Female (Power)
Physical Properties
• Dimensions (approx.) WxDxH:
45x43x14.5mm (1.77x1.69x0.57in)
21x17.4x9.6mm (0.83x0.69x0.38in) / HDMI
• Cable Length: 100mm (3.94in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm (0.19in)
• Minimum Bend Radius: -
• Net Weight: 0.031kg (0.07lb)
• Operating Temperature: 0?C - 70?C (32?F - 158?F)
• Storage Temperature: -10?C - 80?C (14?F - 176?F)
• Humidity: 5 - 95% RH (non-condensing)
• Colour: Black
Miscellaneous
• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.041kg (0.09lb)
• Warranty (Years): 2
• Certificated: CE FCC RoHS & REACH
Package Contents
• HDMI 1.3 to VGA and Audio Converter
Purchasing Information
• No. 38285
• EAN: 4002888382854
| Features | |
|---|---|
| Type | HDMI to VGA |
| Colour | Black |
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminium mylar foil |
| Audio connector type | 3.5 mm (1/8") |
| Audio connector | Yes |
| Colour depth | 12 bit |
| HDMI version | 1.3 |
| Product colour | Black |
| Cable length | 0.1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Power source | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Packaging content | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
