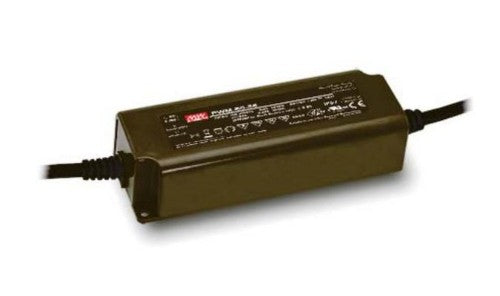

60W PWM output LED power supply
Providing a high efficiency up to 90% and a low no load power consumption below 0.5W, PWM-60 can satisfy the energy saving demand for the new generation LED lighting. The class II design (without FG pin) and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users to flexibly install on various types of lighting systems. The enclosure design is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-60 to meet the anti-vibration demand up to 5G; it also thus conforms to IP67 level, enabling PWM-60 to be used in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature between -40~+70 °C and comply with the relevant global lighting safety certification.
£65.00
Description
PWM-60 is one 60W waterproof constant-voltage output LED power supply series. Differentiating from general DC output power supplies, PWM-60 transmits PWM style output, adapting to directly driving all kinds of LED strips that the color temperature can be maintained and the brightness homogeneity can be assured. Adopting a universal input range between 90VAC and 305VAC and incorporating the built-in PFC function, this series is also designed with a 3 in 1 dimming function (0~10Vdc or PWM signal or resistance) that simplifies the brightness adjustment for system designers so as to achieve light reduction and energy conservationProviding a high efficiency up to 90% and a low no load power consumption below 0.5W, PWM-60 can satisfy the energy saving demand for the new generation LED lighting. The class II design (without FG pin) and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users to flexibly install on various types of lighting systems. The enclosure design is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-60 to meet the anti-vibration demand up to 5G; it also thus conforms to IP67 level, enabling PWM-60 to be used in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature between -40~+70 °C and comply with the relevant global lighting safety certification.
Specifications
| Features | |
|---|---|
| Input voltage | 90-305 V |
| Output power | 60 W |
| Output voltage | 12 V |
| Output current | 5 A |
| Power supply type | Universal |
| Purpose | Universal |
| Power protection features | Over voltage, Overheating, Overload, Short circuit |
| Power current type | AC-to-DC |
| Efficiency | 86% |
| Product colour | Black |
| Certification | UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, IP67 |
| Input frequency | 47/63 Hz |
| Power | |
| Input voltage | 90-305 V |
| Output power | 60 W |
| Output voltage | 12 V |
| Output current | 5 A |
| Efficiency | 86% |
| Performance | |
| Power supply type | Universal |
| Purpose | Universal |
| Power protection features | Over voltage, Overheating, Overload, Short circuit |
| Power current type | AC-to-DC |
| Mean time between failures (MTBF) | 271030 h |
| Certification | UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, IP67 |
| Design | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, IP67 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 490 g |
| Width | 53 mm |
| Depth | 150 mm |
| Height | 35 mm |
| Packaging data | |
| Package weight | 490 g |
| Technical details | |
| Compliance certificates | RoHS |
