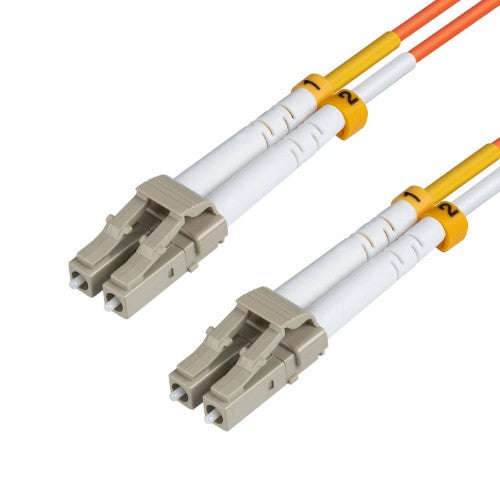

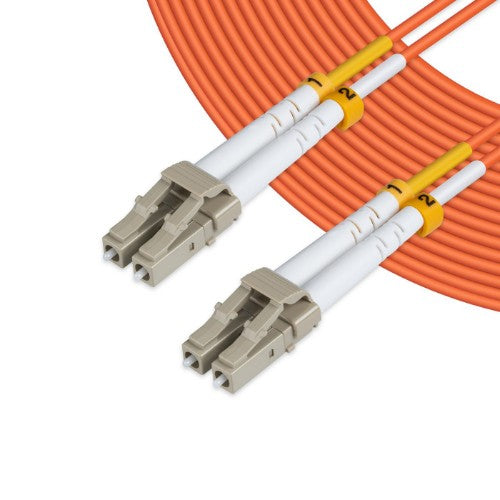

Optical Fibre Cable, LC-LC, Multimode, Duplex, OM1 (Orange) 10m
£8.06
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
- Fibre Standard G.652.D
Description
The 62.5/125µm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data centers, telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. OM1 patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.Specifications
| Features | |
|---|---|
| Fibre optic type | OM1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 70 g |
| Cable length | 10 m |
| Package width | 175 mm |
| Package depth | 169 mm |
| Package height | 22 mm |
| Package weight | 80 g |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 169 mm |
| Package height | 22 mm |
| Package weight | 80 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
