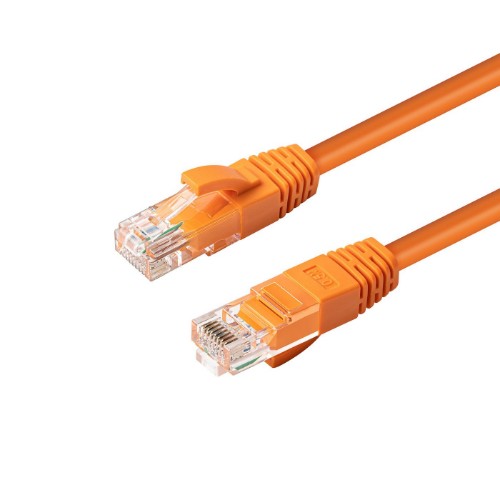

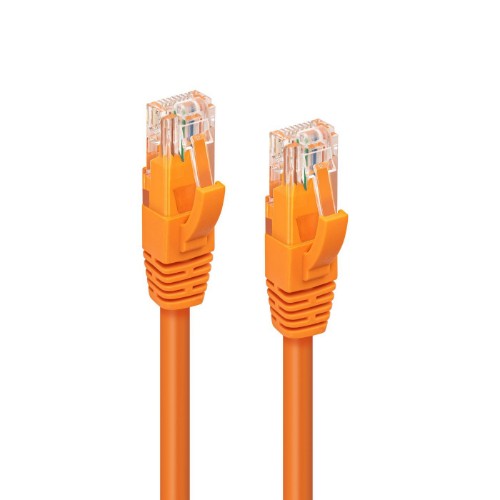

CAT6A UTP 0.25m Orange LSZH
£1.31
Key Features
- To order a full box, please select the following quantity: 250 pcs.
- Fluke CAT6A Channel Link Pass
- PoE+ ready
- LSZH – Low Smoke Zero Halogen
- Snagless hood
- Length marking on boot
Description
The MicroConnect CAT6a Patch Cable is ideal for use in demanding environments where 10Gbit and bandwidth up to 500Mhz is required. There are 50u´ RJ45 connectors to provide a better connection, latch protection to protect the clip from breaking and meter marking on the boot to easy identify the length of the cable.Specifications
| Features | |
|---|---|
| Product colour | Orange |
| Snagless cable boot | Yes |
| Connector shielding | Yes |
| Conductor material | Copper |
| Molded cable boot | Yes |
| Frequency | 500 MHz |
| AWG wire size | 26/7 |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 0.25 m |
| Power over Ethernet (PoE) | Yes |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | RoHS, CE |
| Certificates | |
| Certification | RoHS, CE |
| Weight & dimensions | |
| Depth | 1300 mm |
| Weight | 20 g |
| Packaging data | |
| Package width | 388 mm |
| Package depth | 137 mm |
| Package height | 59 mm |
| Package weight | 484 g |
| Technical details | |
| Product colour | Orange |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 0.25 m |
| Technical features | Kink Protection, strain relief and Snagless |
| Other features | |
| Technical features | Kink Protection, strain relief and Snagless |
| Logistics data | |
| Export Control Classification Number (ECCN) | EAR99 |
