Passive PoE, 42-57 V, 160 W, 802.3bt, 1.2 A, 10/100/1000 Ethernet, 3 x SFP+, 200000 h, IP66, White
£132.50
Key Features
- 3 Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
- 3× 10G SFP+ cages for long-distance fiber
- 3 DC outputs for devices that don’t use PoE, for example, IoT setups

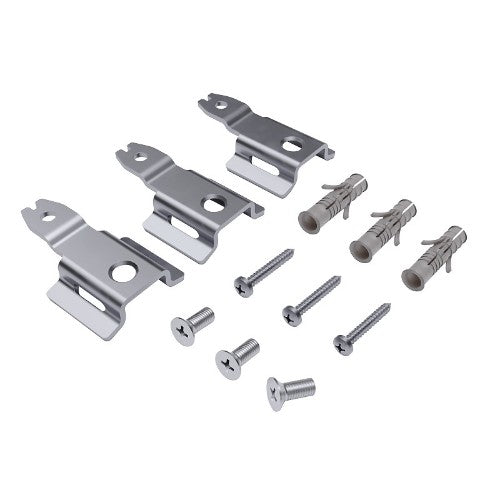

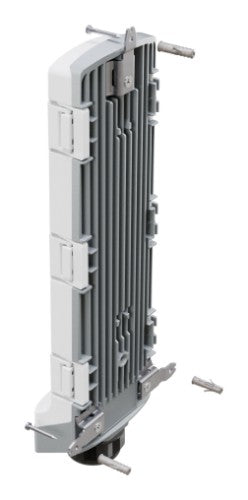

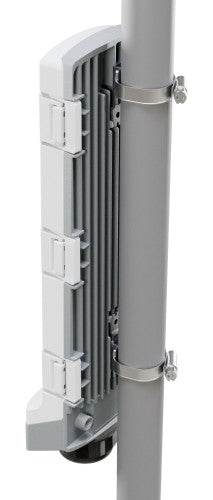

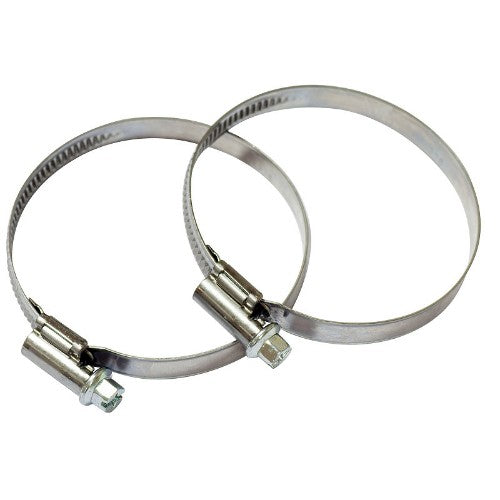

- Heavy-duty IP66 enclosure with handy mounting hardware
- A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)
Description
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple.Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage | 57 V |
| Features | |
| Product colour | White |
| Mean time between failures (MTBF) | 200000 h |
| International Protection (IP) code | IP66 |
| Networking standards | IEEE 802.3bt |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| Power | |
| Output current | 2.4 A |
| Power consumption (max) | 160 W |
| Total Power over Ethernet (PoE) budget | 150 W |
| Power over Ethernet (PoE) voltage | 57 V |
| AC adapter input voltage | 12-57 V |
| Certificates | |
| Compliance certificates | CE, EAC, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Compliance certificates | CE, EAC, RoHS |
