A compact, weatherproof gateway with 2.4 GHz Wireless, 868MHz LoRa®, and a built-in GPS
Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.
The setup is so easy - anyone can learn it. No need to reinvent the wheel, join “The Things Network” to save time and energy with smart solutions!
£130.00
Key Features
- Built-in GPS
- A 2.4 GHz WiFi interface and Ethernet port for seamless integration
- Durable design, tested to perform in various weather conditions
Description

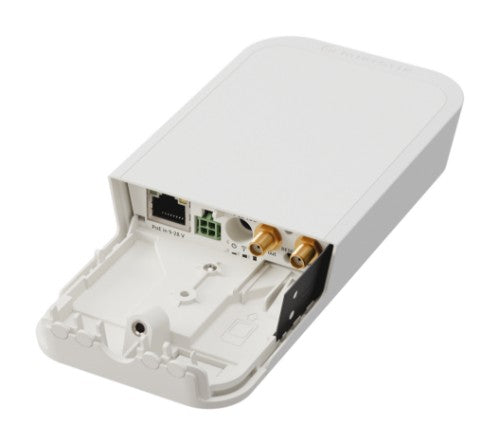

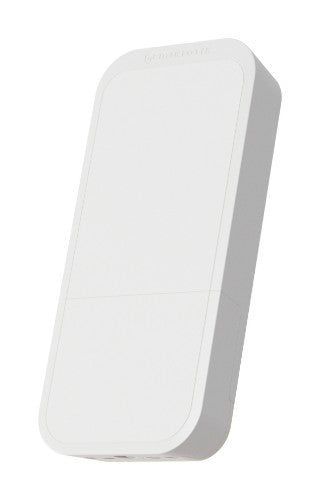

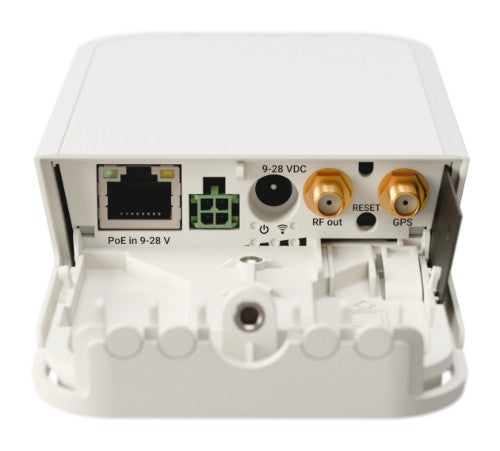

A compact, weatherproof outdoor gateway for LoRa® technology. The updated 868MHz LoRa® module delivers enhanced Rx sensitivity, extending your range and improving reliability—even in rough conditions.Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.
The setup is so easy - anyone can learn it. No need to reinvent the wheel, join “The Things Network” to save time and energy with smart solutions!
Specifications
| Design | |
|---|---|
| Certification | CE, EAC, ROHS |
| Product colour | White |
| International Protection (IP) code | IP54 |
| Features | |
| Antenna gain level (max) | 2 dBi |
| GPS (satellite) | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Built-in processor | Yes |
| Processor frequency | 600 MHz |
| Number of processors installed | 1 |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 600 MHz |
| Number of processors installed | 1 |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Control display unit | No |
| Processor model | QCA9531 |
| Certification | CE, EAC, ROHS |
| Product colour | White |
| International Protection (IP) code | IP54 |
| Network | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Ports & interfaces | |
| SIM card type | MiniSIM |
| SIM card slot | Yes |
| Power | |
| DC input voltage | 9 - 30 V |
| Power consumption (max) | 5 W |
| Software | |
| Compatible operating systems | RouterOS v7 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Technical details | |
| Built-in processor | Yes |
| Wi-Fi | Yes |
| Processor frequency | 600 MHz |
| Number of processors installed | 1 |
| Antenna gain level (max) | 2 dBi |
| GPS (satellite) | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Certification | CE, EAC, ROHS |
| Antenna | |
| Antenna gain level (max) | 2 dBi |
