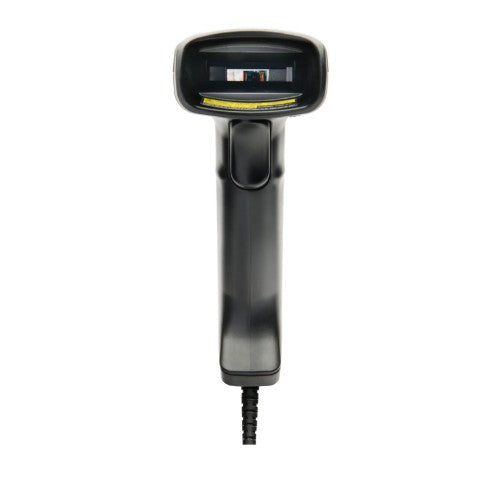

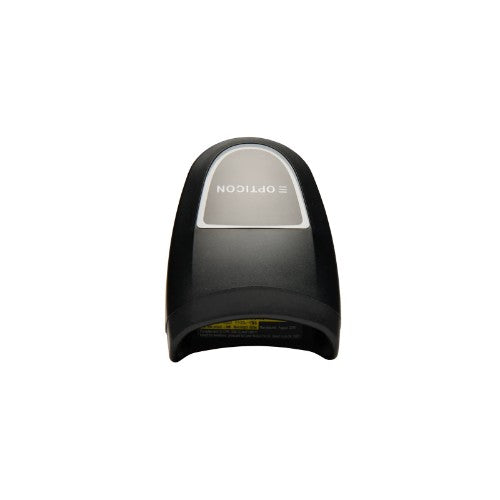

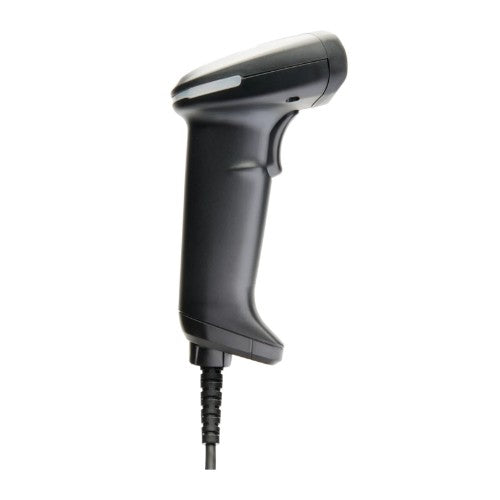

2D, ARM-Coretex-A7 800 MHz, USB 2.0, RS232, 330mA, Black
This handheld scanner is designed to perform strongly at moving object scanning, increasing the easiness of how the device scans. This delivers an overall smooth scanning experience.
The L-46 is often used in service settings; healthcare for wristband scanning, retail for scanning products and scanning e-tickets from mobile phones at festivals or other social gatherings. Both versions of the scanner are versatile because the cable can be interchanged from USB to RS232, therefore serving a broader audience.
£212.25
Key Features
- 2D Imager Scanner
- Extreme high speed scanning
- Editing function
- LED aiming
- Exchangeable cable (interface)
- Fast moving object scanning
Description
The perfect combination of performance, durability and reliabilityThis handheld scanner is designed to perform strongly at moving object scanning, increasing the easiness of how the device scans. This delivers an overall smooth scanning experience.
The L-46 is often used in service settings; healthcare for wristband scanning, retail for scanning products and scanning e-tickets from mobile phones at festivals or other social gatherings. Both versions of the scanner are versatile because the cable can be interchanged from USB to RS232, therefore serving a broader audience.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 39, Code 93, EAN-8, GS1-128 (UCC/EAN-128), JAN, RM4SCC / KIX |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code |
| Tilt reading angle | -65 - 0° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Read rate (max) | 100 reads/s |
| Pitch reading angle | 0 - 65° |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Horizontal field of view | 38° |
| Vertical field of view | 26.4° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 2 m |
| Standard interfaces | RS-232, USB |
| Performance | |
| Keys quantity | 1 keys |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI Class B, RoHS, IEC 62471-1:2006, EN55032, EN55024 |
| Design | |
| Type | Handheld bar code reader |
| Keys quantity | 1 keys |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI Class B, RoHS, IEC 62471-1:2006, EN55032, EN55024 |
| Power | |
| Power consumption | 330 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 105.4 mm |
| Depth | 60 mm |
| Height | 153.4 mm |
| Weight | 112 g |
| Technical details | |
| Type | Handheld bar code reader |
| Keys quantity | 1 keys |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI Class B, RoHS, IEC 62471-1:2006, EN55032, EN55024 |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Drop resistance | 1.8 m |
