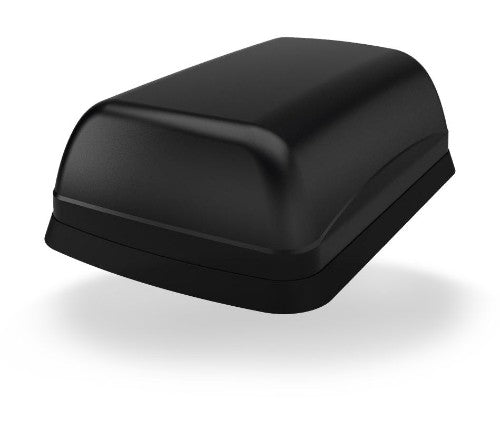

Panorama Antennas LOW PRO 4X4 4G/5G IOT, 2 meter cables
The housing is constructed from robust, flame retardant, impact resistant plastic. The subtle, curved design makes the product harder to vandalise and the IK10 rating ensures that the product is suitable for use in tough environments and devices located in public areas. The housing is UV stable and approved to IP69K for ingress protection.
The product is supplied with integrated low loss flame retardant cables approved to UN ECE R118 and fitted connectors offer plug and play connectivity for a huge range of devices. The Clam® can be installed on conductive or non-conductive panels without significant detriment to performance.
£78.75
Description
The L[X]A[X]M4-7-42[-X] MiMo antenna is designed to be a one size fits all solution for IOT applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4200MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS.The housing is constructed from robust, flame retardant, impact resistant plastic. The subtle, curved design makes the product harder to vandalise and the IK10 rating ensures that the product is suitable for use in tough environments and devices located in public areas. The housing is UV stable and approved to IP69K for ingress protection.
The product is supplied with integrated low loss flame retardant cables approved to UN ECE R118 and fitted connectors offer plug and play connectivity for a huge range of devices. The Clam® can be installed on conductive or non-conductive panels without significant detriment to performance.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.698 - 4.2 GHz |
| Features | |
| Connector gender | Male |
| Antenna type | Omni-directional antenna |
| Cable length | 2 m |
| Antenna connector type | SMA |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.698 - 4.2 GHz |
| Power | |
| Power consumption (max) | 5 W |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 188 mm |
| Height | 57 mm |
| Technical details | |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.698 - 4.2 GHz |
| Antenna type | Omni-directional antenna |
| Cable length | 2 m |
| Antenna connector type | SMA |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
