4x4 4G/5G LTE (617-960/1710-6000MHz)

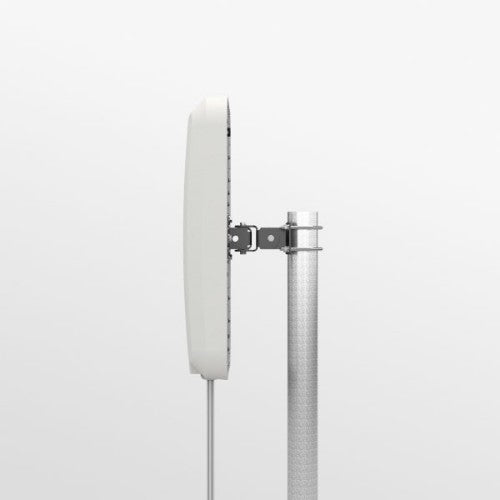

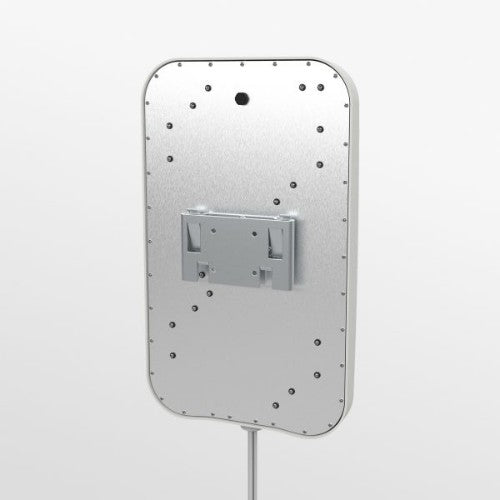

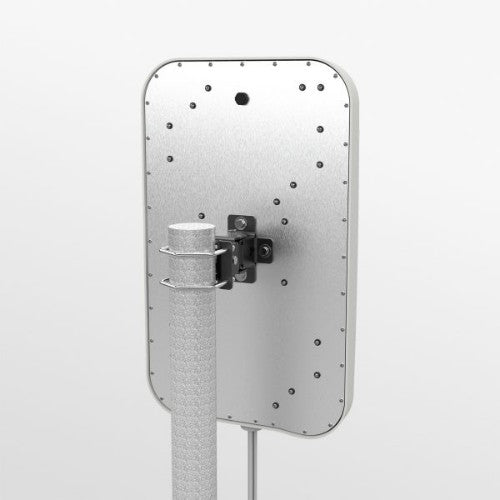

The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.
£390.00
Description

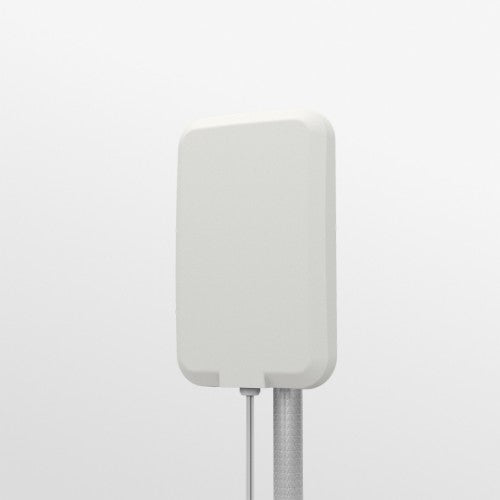

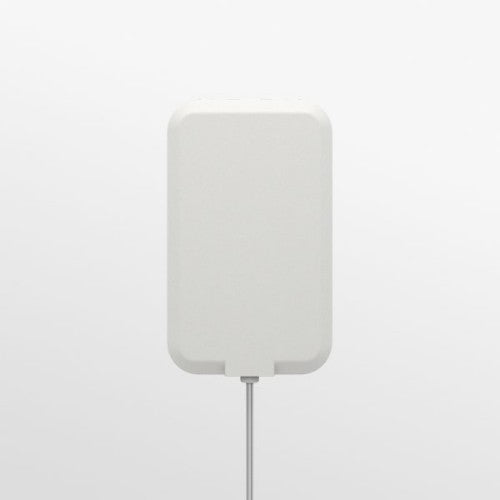

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Frequency band | 0.617-0.960/1.710-6 GHz |
| Gain | 9 dBi |
| Features | |
| International Protection (IP) code | IP66 |
| Antenna type | MIMO directional antenna |
| Power handling | 50 W |
| Mounting | Wall |
| Product colour | White |
| Cable type | 4x 5m (16') CS32 |
| Antenna connector type | SMA |
| Antenna gain level (max) | 9 dBi |
| Frequency band | 0.617-0.960/1.710-6 GHz |
| Gain | 9 dBi |
| Power | |
| Power consumption (max) | 50 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 307 mm |
| Depth | 507 mm |
| Height | 87 mm |
| Technical details | |
| Antenna gain level (max) | 9 dBi |
| Frequency band | 0.617-0.960/1.710-6 GHz |
| Antenna type | MIMO directional antenna |
| Power handling | 50 W |
| Mounting | Wall |
| Gain | 9 dBi |
| Cable type | 4x 5m (16') CS32 |
| Antenna connector type | SMA |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
