patchbox.one / Cassette / 30RU / UTP / Black
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet

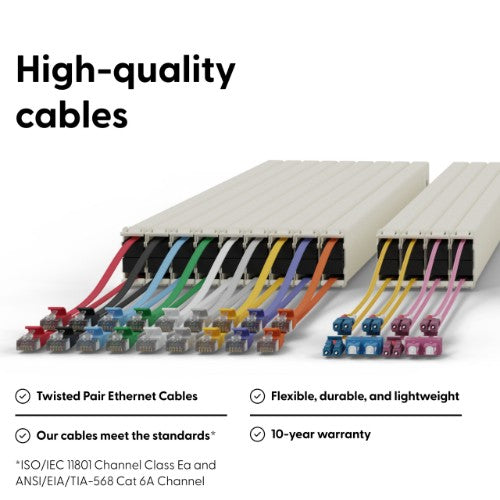

Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
£20.00
Key Features
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting

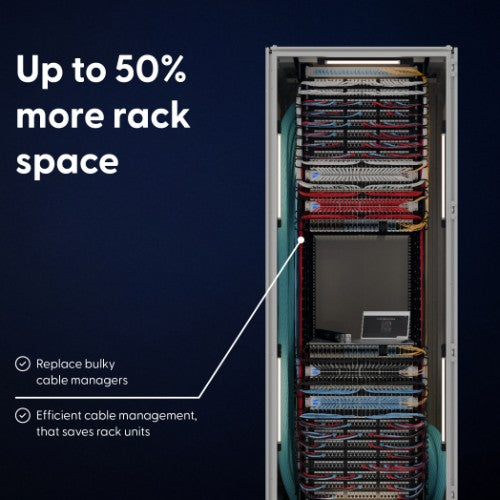

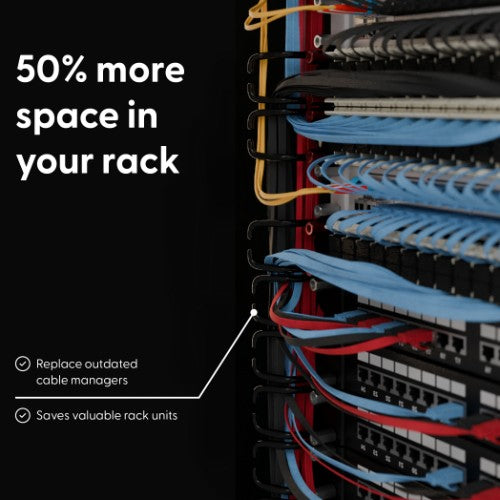

- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
Reasons To Buy
Replace Cassettes in Seconds
Hot-swappable cassettes let you adapt or upgrade instantly, with zero downtime.Customize to the Last Detail
Cable type, length, color, and connector—everything’s tailored to your setup.Cut Maintenance Time in Half
Pre-routed and retractable, the cassettes reduce service times dramatically.Color-Coded for Instant Recognition
Easily identify ports, devices, or networks at a glance with 8 cable colors.Description
The Ultimate Cable Management SolutionThe patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Country of origin | Hungary |
| Conductor material | Copper |
| AWG wire size | 30 |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3bt |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 1.8 m |
| Power over Ethernet (PoE) | Yes |
| Cable shape | Flat |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 40 mm |
| Height | 18 mm |
| Weight | 200 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging content | 1 x patchbox.one / Cassette / 30RU / UTP / Black |
| Packaging data | |
| Package width | 668 mm |
| Package depth | 28 mm |
| Package height | 50 mm |
| Package weight | 280 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Black |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3bt |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 1.8 m |
| Cables included | LAN (RJ-45) |
| Country of origin | Hungary |
| Other features | |
| Cables included | LAN (RJ-45) |
